Chuzhou Kexin Machinery Technology Co., Ltd

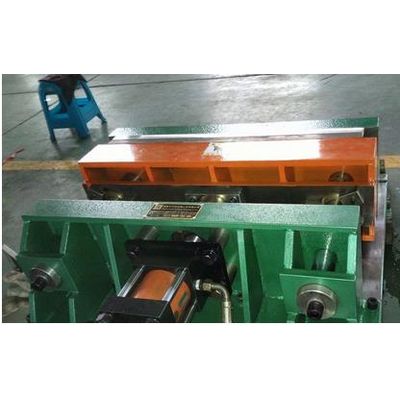

KexinFreezer Liner and Baseboard Occlusion Machine

SHARE

The fold angle around the bottom of the tank is 90 degrees,  the unilateral length of a right angle side is about 3mm, the specific dimensions shall be carried out according to the dimensions of the product drawings(The buyer shall provide the product drawings). Device compression length is 600 mm, the work schedule is adjustable from 10 to 20 mm.

Most popular related searches
  • Dimension: Width750mm
  • Production takt:
  • no more than 6 seconds/time,
  • no more than 25 seconds/piece
  • Operator: normal 1 person  operation
  • Height of production line: 800mm from the ground
  • Equipment color: to customers`requirements
  • Power supply: 4-5KVA(380V 50HZ)
  • Forming material: δ0.35/L2Y2/L2M
