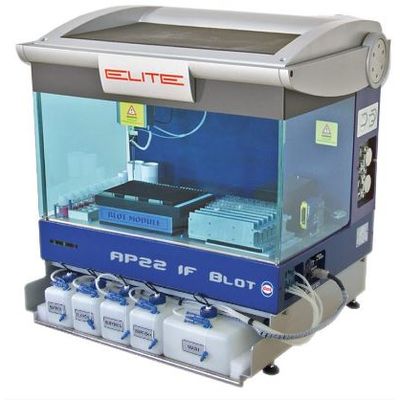

Elite - Model AP 22 IF Bolt - Full Automated System
FromDAS Srl
AP 22 IF BLOT ELITE is a full automated system for ELISA and IFA and BLOT methods. The instrument is able to run 2 ELISA micro-plates with 8 tests on line, 16 IFA slides or 24 BLOT strips; besides of ELISA and IFA processing (AP22, AP22 IF), it is able to carry out the full automation for the Dot/Western Blot, thanks to the blot module and a camera, starting from sample dilution and dispense, reagent dispense, incubation, strip washing to the dot imaging processing and assessment for each strip; the software also provides the data record and patient report.
Most popular related searches
ELISA technical features
- ELISA dilution cups: 110 positions
- Removable trays: Modulare rack to hold calibrators, controls and reagents for 8 tests on line
- Microtiter plates: 2 standard plates (12 x 8 well format) incubated at room temperature or from 36° to 45°C
- Shaker: Microtiter plate shaking capability (optional)
- Liquid handling: 1 probe for dilution and dispense
- Sample dispense time: 11s with 2ml of wash buffer
- Plate washing: Two 8 nozzles manifold, one to dispense and the second to aspirate; residual volume <3µl
- Wash buffers: 2 Buffers for Elisa microplates in external tanks with level sensors
- Plate washing inaccuracy: CV
- Reading system: 8 independent photo-metric channels with mono and bichromatic reading capability
- Interferential filters: 2 precision filters (450 e 630 nm); 2 more on request (4 filters max; 400-700 nm)
- Reading capability: Reading from 0.000 a 3.000 OD; inaccuracy ± 1% from 0.000 to 1.500 OD ± 2% from 1.500 to 3.000 OD
IFA technical features
- Liquid handling: 2 probes: one to dilute and dispense, the second for slide washing
- Sample dispense time: 11s with 2 mlof wash buffer
- Slide processing time: 30 minutes for dispense or wash 16 slides with12 wells
- Supllied trays: 10 tests on line capability: tray with 220 positions for dilution cups; tray with 16 positions for IFA slides; reagent tray for 18 controls, 9 conjugates, 1 cleaning solution for the probe and 2 diluents for samples
- Liquid sensor probe: Able to detect 150µl
- Wash buffers: 2 IFA slides wash buffers in external tanks with level sensors
- Slide washing modes: each well is washed independently, continuous flow or multiwell mode for specific washing effectiveness
Caratteristiche tecniche BLOT
- Liquid handling: 2 probes: one to dilute and dispense, the second for strip washing
- Dispensation: up to 3000µl with 1µl steps resolution
- Reagent tray: 10 tests on line capability: 10 x 110 ml reagent vials and 10 control positions
- Strip holders: 3 trays (8 strip per tray) to run up to 24 strips on the shaking plane
- Wash buffers: 2 strips wash buffers in external tanks with level sensors
- Reading capability: High resolution colour camera for imaging acquisition
COMMON technical features
- Sample barcode reader: built-in sliding sample barcode reader
- Sample tray: 91 sample tubes Ø13mm or 70 sample tubesØ16mm; both kinfs can be used at the same time
- Dilution cuvettes: 22 cup blocks for easy loading
- Syringe: 1000µl volume;1µl step resolution
- Dispensation: from 8µl to 1000µl by steps of 1µl; inaccuracy ±1% at 100µl
- Liquid tanks: WASH and WASTE tanks equipped qith level sensors
- Connection: LIS interface capability, work list import from Host Computer, a single PC can run more instruments in parallel
- Operative systems: Windows 7 or Windows 10
- PC:
- Minimum requirements: 250 MB free space Hard Disk; CD-Rom reader ; 2GB RAM; Intel Pentium Dual Core or equivalent, VGA 1024 x 768 16 million colours; 2 free USB 2.0 port; printer.
- Sugested requirements: 4GB RAM; Intel Core 2 Duo E6500 series processor or equivalent
- Power requirement: 230 / 115 VAC, 50-60 Hz, 350 W
- Measurements: cm 62 x 83 x 72h
- Weight: 85 Kg
