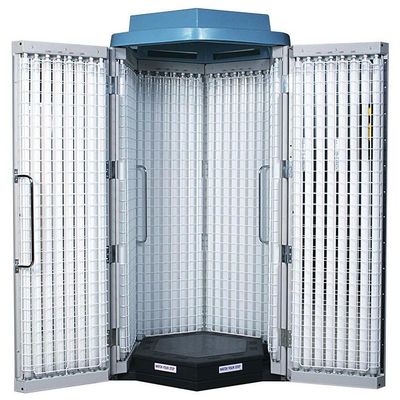

Houva - Model 4 - Full Body Clinical Treatment Unit

• DermaSense® microprocessor-controlled sensors
• Viewing window to monitor patient during treatment
• Choice of open-top or sealed phototherapy unit
• Safety screen snaps out for easy lamp replacement
• Handrail and non-skid floor for patient safety
• Raised floor for proper treatment of lower legs
• Perimeter flow ventilation for increased patient comfort
• Safety interlock automatically shuts unit off when
  door of Houva 4 phototherapy system is open
• “Watchdog” circuitry automatically shuts off unit if potential malfunction detected

• Sensors are removable and can be traded in annually for newly recalibrated sensors with no down time or service fees

• Constantly monitors electrical power levels with real time readings – no more light meter readings
• Optimal treatment times assured
• Controls designed never to fail in ON position

• 48 Narrow Band UVB lamps
• Combination Unit with 24 Narrow Band UVB and 24 UVA lamps
• 48 UVA lamps
• 48 UVA1 lamps

ELECTRICAL RATING

• 208 VAC, 50/60 Hz, 24 A per leg
• Requires a 30A disconnect
• 10-foot, 4 conductor #10 AWG power cable supplied

DIMENSIONS

• 46″ W x 49″ D x 87″ H (117 cm x 124 cm x 221 cm)

INTERNATIONAL PRODUCT SPECIFICATIONS

• Optional international base 220-240 volts, 50/60 Hz

WARRANTY

• All parts (excluding lamps) and labor carry a full 5-year warranty
• Extended warranties available
• Lamps carry a 90 day warranty
