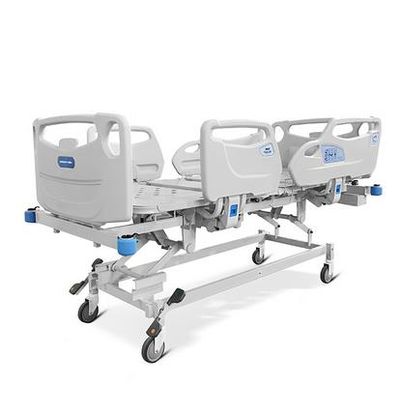

Medik - Full Electric Adjustable Medical Patient Bed
The YA-D5-13 ICU bed is compactly designed with an elegant appearance, easy to operate. Wide range height adjustment facilitates medical operation.
Most popular related searches
- Model: YA-D5-13
- Overall Size: 2230*1000*465~765mm
- Safe Working Load: 220kg
- Funtions: Backrest, Footrest,High-Low,Trendelenburg,Revere- Trendelenburg
- Certificate: ISO/CE
- With embedded railing control, visible icons, with nurse control panel facing outside and limited button facing the patient.
- Central brake system is adopted with dual braking pedals on both sides for easy manipulation
- Bumper caster is located on four corners of the bed
- Manual CPR lever is located on both sides
- Angle indicator is achieved on the railing, especially the 30 degrees for back section adjustment is clearly marked for frequent use.
- Model: YA-D5-13
- Size: 2230*1000*465~765mm
- Bed surface: 1937*865mm
- Backest adjustable: 0-70°
- Footrest adjustable: 0-25°
- Calf section: -15°-15°
- Height adjustment: 465-765mm
- Trendelenburg: 0-12°
- Reverse trendelenburg: 0-12°
- CPR function: Yes
- Loading capacity: 230kg
