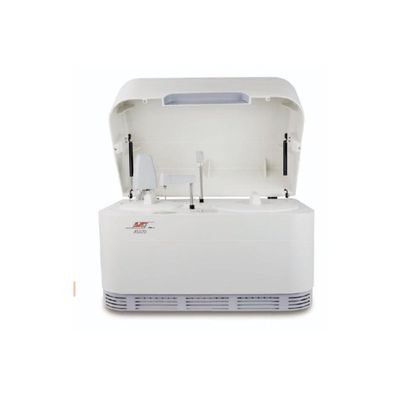

ASSEL - Model AS820 - Fully-auto Chemistry Analyzer

• Random access, fully automated, STAT
• Throughput: up to 150 test per hour
• 40 reagent positions and 40 samples position
• 50 reaction positions

• Wash station
• Barcode scanner
• Internal PC with touch screen

User-friendly software

• Easy operation with intuitive navigation
• Easy reagent parameters setting
• One click to import and backup
• Auto troubleshoot failure recovery
• Powerful statistic system
• Manual dilution, auto dilution and post dilution
• Easily re-run and restore test
• Bilateral LIS interface with HL7 protocol

Optical system

• Halogen tungsten lamp with more than 2000 hours’ life time
• Completely-sealed spectrophotometer by filter
• Simultaneously dual-wavelenght detection
• Auto gain adjustment to assure stable optical system

Sampling system

• One probe and one mixer bar
• High polished nano material avoid hanging liquid
• Maintenance-free rotor with stable movement
• High accuracy ceramic syringe
• Auto depth adjustment
• Liquid level detection, vertical and horizontal collision protection

Sample & reagent disk

• 24-hour reagent refrigerator. 4-12°C
• Noise free water cooling design
• 40 reagent positions
• 40 sample positions with STAT priority

Reaction system

• 50 reaction cuvettes
• Constant solid heating
• Reaction temperature: 37°C ±0.1°C
• 6-step wash station (optional)
• Reaction volume 160 – 500 µl
