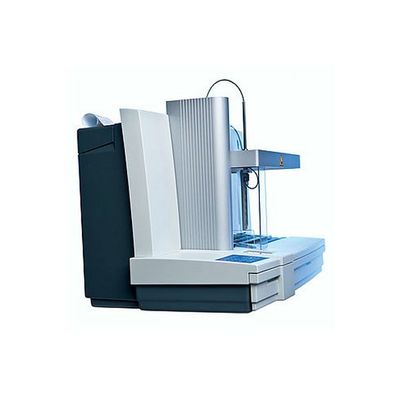

TECO Coatron -Model A6 -Fully Automated 6-Channel Hemostasis Analyser for Routine Coagulation Tests

• Sample
  3 x 15 primary tubes
  Positive sample identification (ID and rack position ) with barcode
  Cap Piercing for BD Vaccutainer® or Sarstedt Monovette®.
  Micro tubes like Eppendorf® 2mL for pediatric samples
  Emergency STAT position
  Sample continous loading in random access mode


• System
  6 optic channels at 405nm with auto light sensing and extraneous light elimination to reduce interferences such like bilirubin or sunlight.
  High-precision XYZ pipetting system with liquid level sensor
  Long living and flexible Cap Piercing needle
  Integrated laser barcode reader for samples and reagent
  Bi-directional Interface for PC-Link to LIS.
  Optional trolley to enlarge the waste management
  Integrated graphical thermal printer
  34 heated and cooled positions for reagents, controls, buffers
  Integrated drawers for consumables
  System configuration as “OPEN” or “CLOSED”


• Quality Control
  Onboard positions for up to 4 control plasma.
  Auto QC flagging for errorneous results
  One click report with Levey-Jennings graph and Westgard analysis
  LOT. number ( control + reagent) specific QC analysis is possible


• Software
  An intuitive TECO familiar graphical user interface.
  Multi language dialogue (English, German, Spanish, Italian a.o.)
  Free programmable test protocols to change or adapt new tests
  Calculation of activity %, INR, Ratio, g/L, mg/dL and more.
  Calibration curve can be identified with up to 6 points per test.
  Simple firmware update


• Special Functions
  Automatic plasma dilutions up to 1:100
  Automatic test calibration routines
  Automatic test skip, if reagent run out.
  Full database for patient history.
  Patient monitoring for long time periods
  Reaction curve monitoring


• Economic
  Quarter test volume to 75% cost savings.
  Reagent dead volume is below 200 μL
  Very economic consumption of rinse and cleaning solution.
  All critical system parameters are monitored and make the Instrument nearly free of service.

General

• Dimensions : 85 x 60 x 70 cm
• Weight : 40 kg
• Power values : 90-240 Vac / 50-60 Hz
• Ambient conditions : 18°C – 30°C
• 20% - 80% r.H.
• no direct sunlight

Test

• Global : PTm, aPTT, Thrombintime,
• Fibrinogen (Clauss & PT derived), Heparin
• Factors : Factor II, V, VII, VIII, IX, X, XI, XII
• Thrombophilia : LA Screen (DRVVT), LA Confirm (DRVVT), Activated Protein C resistance, Antithrombin, D-Dimer
• In preparation:
• PEGX chrom for DXaI, ECAH chrom for DTI, THRO (Thrombin generation)
• Calculated units : Activity %, Ratio, Polish ratio, INR (ISI system or INR calibration curve), g/L, mg/dL, ng/L, ng/mL, μg/L, IU/mL
