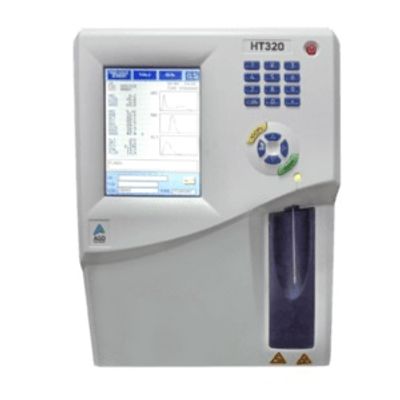

AGD -Model HT320 - 3 Part -Fully Automated Hematology Analyzer
HT320 is the 3 part hematology analyzer with 3 Histogram, 20 reportable parameters including 3 research use parameters, TFT color touchscreen with built in numeric keyboard, Efficient system with throughput of 60 Samples/Hour, Based on Impedance method for WBC/RBC/PLT ,Spectrophotometery for Hemoglobin and volume integration for Hematocrit, Sampling mode- Whole blood: ≤10 µL, Storage capacity is up to 1500 results with graphical information and 6 QC levels(100 files per level), Interfacing of 2 USB ports , LAN and Bidirectional LIS, External printer: Dot matrix ,thermal,B/W inkjet ,B/W laser printers, Specific flagging messages to alarm for microscopic slide review, Reagents: Diluent , lyse and Cleaner, Sturdy hardware with minimal maintenance & optimal workflow management.
Parameters :
- 18 reporatable Parameters:LYM%.LYM#, MON%,MON#,GRA%,GRA#,RBC,HGB,HCT,MCV, MCH, MCHC,RDW,PLT,MPV,PDW*,PCT*.
Power supply :
- Input: 100 to 240 VAC 50 to 60 Hz
- Output: 24V – 3 A – 72W
Meaurement principle :
- WBC/RBC/PLT – Impedance Hemoglobin – Spectrophotometry at 555nm Hematocrit – Volume integration
External supported Accessories (optional) :
- External thermal printers (DPUS454)
- 1D USB Barcode reader
Environment and conditions of use :
- Working Temp. : 18 to 32°C
- Storage Temp. : 10°C to 50°C
- Altitude: Up to 2000 meters
- Dimensions (mm) : 350x250x340
- Weight (kg) : 9
Operating configuration
- 2 USB ports
- Ethernet-RJ45
- Serial LIS-SUBD 9 pin male
- Serial LIS-SUBD 9 pin female
- Power supply
Sampling mode:
- Whole Blood (WB) : sampling volume < 10 µl
Throughput:
- 60 samples/hour
Storage :
- Up to 1000 results in internal memory
- QC 6 levels ( 100 files per level )
Screen :
- Touch-screen LCD (240×320)
