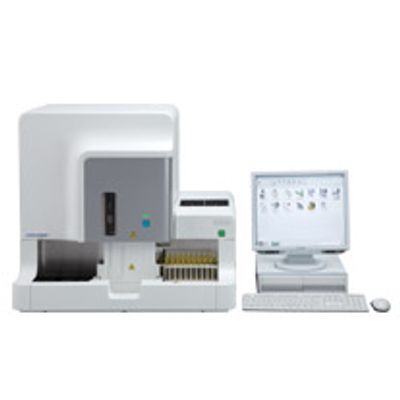

Aution Hybrid - Model AU-4050 - Fully-Automated Integrated Urine Analyzer

Optimize workflow with true walkaway automated urinalysis
Maximize your laboratory performance with the AUTION HYBRID AU-4050; a compact fully-automated and integrated urine analyzer that combines two proven technologies to perform urine chemistry and sediment analysis. The easy to use analyzer reduces operator variability, while optimizing laboratory workflow in one small package.

Quality Results
The AUTION HYBRID AU-4050 uses two industry trusted technologies to perform urine chemistry and sediment analysis. The chemistry analysis uses the proven AUTION™ dry pad urine chemistry strips. Sediment analysis is performed by florescent flow cytometry in two separate chambers to reduce subjective interpretations using stains to accurately identify and enumerate key formed elements. The combination of urine chemistry and sediment technology generates standardized and accurate results on one consolidated report, providing operator confidence time after time.

Compact Size
The hybrid analyzer consolidates urinalysis testing into one compact platform, making fully automated urinalysis a reality for laboratories of most sizes and volumes. The space saving design is 30-50 percent smaller than competitive products and is an ideal fit to meet laboratories space constraints. It accommodates almost any existing space with little to no remodeling required.

Optimize Workflow
The high capacity system can meet the busiest laboratory workload demands processing up to 200 chemistry samples an hour and delivers rapid results in as little as two minutes and fifteen seconds. The easy to use walkaway analyzer provides operators the freedom to multitask. Operation is simple, load specimens, walk away to perform other activities, and return to the results. Reduce manual hands on time focusing only on results flagged for review.

Improve Outcomes
Healthcare is rapidly transforming to create a higher quality of care at a lower cost. Enhanced bacteria detection coupled with reduced subjectivity inherent in manual analysis directly impacts quality measures. Improved accuracy gives clinicians the capability to rapidly assess urinary tract infections and other conditions improving patient outcomes. Standardized interpretation and enumeration of formed elements leads to effective culture criteria, minimizing unnecessary cultures and reducing the overall cost of care.

• Weight: 265 lbs (120 kg)
• Dimensions: Width: 31.5" Depth: 28.3" Height: 28.3"
• Minimal Sample Volume:
• 40 mm from bottom of tube (approx. 5 mL)
• 1 mL manual FCM
• Data Storage: Up to 10,000 analyses
• Throughput: 100-200 samples/hour (varies depending on CHM and FCM test mix)
• Power Supply: 100-240 VAC, 50/60 Hz

The AUTION HYBRID AU-4050 analyzer is no longer available. ARKRAY is committed to delivering the best customer care and will guarantee support for your AUTION HYBRID™ AU-4050 analyzer through December 31, 2023. ARKRAY will continue to provide the supplies and support required for operation through December 31, 2023.

• AUTION HYBRID™ reagents and consumables
• Genuine spare parts
• Service agreements
