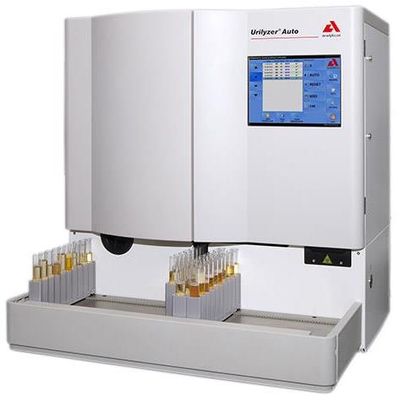

Urilyzer - Model Auto - Fully-Automated Urine Test Strip Analyzer

SHARE

The Urilyzer® Auto is a newly designed fully-automated urine test strip analyzer introducing the pipetting technique in combination with a new measuring head to analyze the CombiScreen® 11 Auto urine test strip. In addition the system has a physical ­measurement cell module for determination of specific gravity, color and turbidity. The system is specifically designed to improve the accuracy and safety of urine test strip evaluation.

Most popular related searches
urine test strip
urine testing
automatic urine analyzer
urine analyzer
urinal
urine sampling
patient database
hemoglobin
patient data
  • Throughput of up to 240 tests/hour with a batch size of up to 100 test tubes
  • Sample volume of 1 ml (2 ml is required as minimal sample volume)
  • Liquid level sensor
  • Memory capacity of 10,000 results
  • Comfortable color touch screen
  • Bi-directional interface for LIS
  • Built-in barcode reader and thermal-printer

  • Type: Fully automated benchtop urine test strip analyzer
  • Measurement technology: Reflectance photometer with 4 wavelengths: 505, 530, 620, 660 nm + Physical Measurement Cell module (PMC)
  • Parameters: Test strip parameter: Bilirubin, Urobilinogen, Ketones, Ascorbic Acid, Glucose, Protein (Albumin), Blood (Hemoglobin), pH, Nitrite, Leucocytes
  • PMC parameter: Color, Turbidity, Specific gravity
  • Throughput: Up to 240 tests/hour
  • Data storage: Patient and QC database: 10.000 tests
  • Display: 800x600 TFT color touchscreen
  • Interfaces: Serial RS232, USB, PS2, VGA
  • Dimensions: 600 x 650 x 635 mm (WxDxH)
  • Weight: 55 kg
  • Power supply: 100-250 V AC, 50/60 Hz
  • Operating environment:
    • Temperature: +15°C to +32°C
    • Relative humidity (non-condensing): 30% to 80%
    • Atmospheric pressure: 70 kPa to 106 kPa
  • Printer: Built-in thermal printer
  • Barcode reader: Built-in (optional external); Barcode types: CODE 39, CODE 128, EAN-13, EAN-8, INTERLEAVED 2/5, CODABAR
  • Protocols: LIS2 (ASTM+), HL7
  • Features:
    • Loading capacity (samples): Up to 100 in one batch
    • Loading capacity (urine test strips): 150 (one tube)
    • Racks: 10 racks, each with 10 positions
    • Minimum sample volume: 2 ml (native urine)
    • Automatic sample mixing
    • STAT function
    • Operator Management
    • Test strip & QC Management (full traceability via LOT and Expiry entry)
    • Data Management
    • Automatic printout or transfer of result
    • Flexible advanced testing and reporting options (e.g. sediment recommendation flag)
    • System solution: Only distilled water permanently connected
    • Connection to Urilyzer® Sed possible -> Urilyzer® Duo

The Urilyzer® Auto uses distilled water as system solution, which is used to clean the pipetting needle. At least 300 tests can be performed with only 5 L distilled water.
