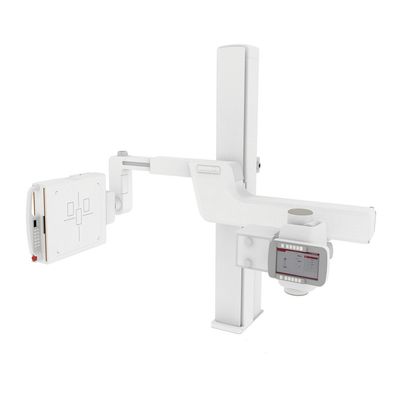

Examion -Model X-DRS Floor Z-Arm -Fully Motorised Swivel Bracket System
Our X-DRS Floor Z-Arm X-ray system is designed for enhanced user convenience. It is fully motorised, so that there are no movements that your operators have to perform mechanically. The swivel bracket system is particularly convenient if you operate the X-ray system without interruption and for long periods, and if you often have to take oblique images. The system is conveniently positioned at the touch of a button. On the touchscreen, you can select saved positions for the respective X-ray examination, including rotation of the bucky tray – so the positions for oblique images can also be saved.
Thanks to the full motorisation of the X-DRS Floor Z-Arm, you also have a convenient stitching option for X-ray images: In this case, both the swivel arm and detector are turned so that the individual beam cones all emanate from the same source. This is the only way to ensure that the individual images perfectly overlap.
- Autopositioning of the X-ray system according to the system`s organ programs
- X-ray tube and bucky tray are directly connected to each other and thus always centred
- Lateral X-ray exposures: Lateral hip and spine X-rays are possible without rotation
- Stitching option: The positions are automatically adjusted for the required partial X-ray exposures.
Fully motorised X-ray system
No mechanical movements requiring physical effort need to be performed
Positioning at the push of a button
Selection of previously saved positions on the touchscreen, including positions for angled images
Compact design
Suitable for the smallest X-ray rooms
