RayOne -Model EMV -Fully Preloaded Non-Diffractive IOL

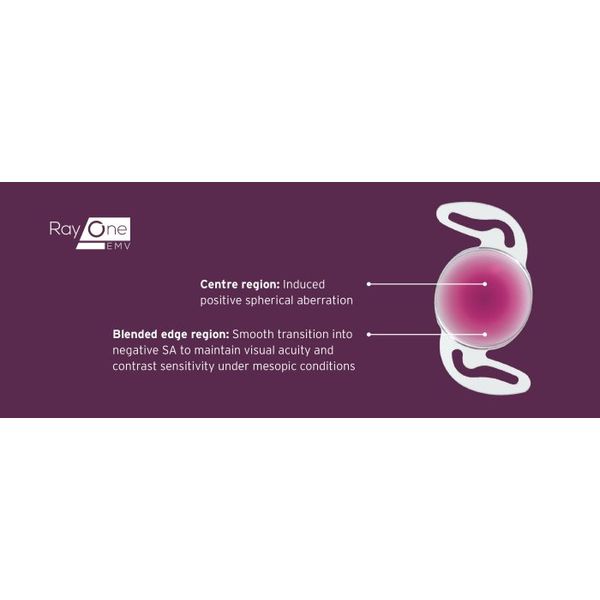

RayOne EMV, a new fully preloaded non-diffractive IOL, was designed in collaboration with world renowned surgeon, Professor Graham Barrett. RayOne EMV offers reduced dysphotopsia compared to diffractive IOL designs. This is achieved through a unique aspheric anterior surface which adds to the positive spherical aberration (SA) of the cornea in a controlled manner. This positive SA smoothly transitions to negative SA at the periphery to prevent reducing image quality from positive SA at larger pupil sizes.
Model Name: RayOne EMV
Model Number: RAO200E
Power Range: +10.0 D to +30.0 D (0.5 D increments)
Delivery System Type: Fully preloaded IOL injection system
Incision Size: 2.2mm
Delivery System
Injector Type: Single use, fully preloaded IOL injection system
Nozzle Size: 1.65 mm
Bevel Angle: 45°
Lens Delivery: Single handed plunger
EMV IOL
Material: Single piece Rayacryl hydrophilic acrylic
Water Content: 26% in equilibrium
UV Protection: Benzophenone UV absorbing agent
UV Light Transmission: UV 10% cut-off is 380 nm
Refractive Index: 1.46
ABBE: 56
Overall Length: 12.50mm
Optic Diameter: 6.00mm
Optic Shape: Biconvex (positive powers)
Asphericity: Aspheric anterior surface
Optic Edge Design: Amon-Apple 360° enhanced square edge
Haptic Angulation: 0°, uniplanar
Haptic Style: Closed loop with Anti-Vaulting Haptic (AVH) technology
