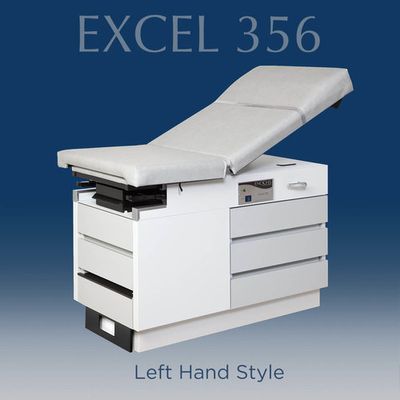

ENOCHS -Model EXCEL 356 -General Examination Table

SHARE

The EXCEL 356 general examination table is engineered to meet the rigorous demands of modern medical facilities. It features an adjustable pelvic tilt, an efficient warming drawer, and multi-position stirrups, along with a pull-out leg extension to facilitate gynecological examinations and procedures. With dual electrical receptacles, ample storage space, and fully welded all-steel construction, this table can support a patient load capacity of up to 600 lbs. Key features include a locking safety door with overload protection via a circuit breaker, instrument warming drawer that maintains up to 98°F, and a spring-assisted counterbalance for back adjustments. The table's one-piece upholstered top is designed for easy cleaning, and the base, which is rust-resistant, supports no plastic parts. The EXCEL 356 requires no assembly and is classified by UL to UL60601-1 and similar international standards.

Most popular related searches

examination table

patient loading

healthcare facility

gynecology examination

stainless steel iv pole

examination procedure

The EXCEL 356 is designed to handle the high demands of today’s busy medical facilities. The adjustable pelvic tilt, efficient warming drawer, multi-position stirrups and pull out leg extension aid practitioner in GYN exam and procedures. Added features of dual electrical receptacles, ample storage and all steel fully welded construction engineered to accommodate patient load capacity of 600 lbs. makes this table ideal for the highest percentage of a patient population.

4-YEAR Warranty
Patient Load: 600 lbs.
Dual Electrical Outlets
- Locking safety door
- Overload Protection: Circuit Breaker - NO FUSES
- Total load: 9 amps
Instrument Warming Drawer warms drawer contents to approx. 98°
11° Pelvic Tilt with release levers on both sides of table
Leg Extension moves independent of Irrigation Basin for fast transition
Easy to adjust Stirrups with length and lateral adjustment
Spring Assisted Counter Balance for back adjustment - NO GAS CYLINDER
Easy to clean One-Piece Upholstered Top, designed without cross-seams, decorative stitching or embossing
Five spacious Drawers with 3.32 cubic feet of Storage
Field Reversible Side Drawers
Extra Long, Pull-Out Locking Step with rubber tread
All welded Steel Base treated for resistance to rust - NO PLASTIC
Table Ships Complete - NO ASSEMBLY REQUIRED
Classified by UL to UL60601-1, IEC/EN 60601-1, CAN/CSA-C22.2 No. 601.1

Base Construction: 4-YEAR Fully welded all steel base
Back Lift Mechanism: Horizontal to 80° by spring assisted counter balance
Couch Top: One-piece upholstered top, steel reinforced
Perineal Recess: Not available on this model
Pelvic Tilt: 11°
Leg Extension: Extends out 18” from end of seat section
Irrigation Basin: 4” Deep Basin
Electrical Outlets: Dual electrical outlets, hospital grade, UL Listed
Instrument Warmer: High efficiency warmer utilizes top footend drawer
Stirrups: Multi-positional, lateral, and length adjustment
Storage: 3 Side Drawers: 21.5” W x 15” D x 4” H 2 Footend Drawers: 15.5” W x 15” D x 4” H Total Storage Space: 3.32 cubic feet
Footstep: Extra long surface engineered for 600 lb. patient load
Paper Roll Holder: Accommodates 18” or 21” table paper widths
Accessories: knee crutches, drawer locks, stainless steel basin, restraint straps, IV pole, urology basin with drain and screen, headend accessory rails, footend accessory rails, caster base
Mains Power Entry: Standard feature
Duty Cycle: Receptacles: Continuous Instrument Warming Drawer: Continuous
Ratings: Table: 115V 60Hz 10 amps Receptacles: 115V 60Hz Total receptacle load: 9 amps
Table Dimensions: Width: 27”, Height: 34”, Length: 55” (extends to 73”)
Table Weight: 268 lbs.
Patient Load: 600 lbs. evenly distributed on main couch
