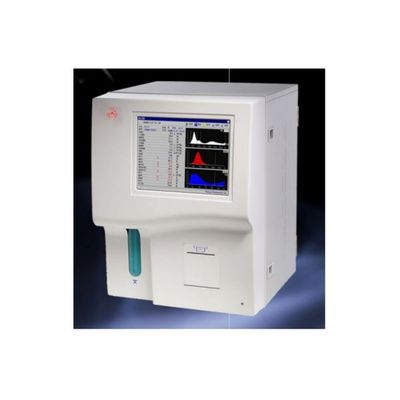

Esse3 -Model ES-HEM 300 -Haematology Analyzer
FromEsse3 s.r.l.
Fully Auto Hematology Analyzer Is An Easy Operation . Blood Analytical System With 3-Part Differentiation Of Wbc. With Advanced Digital Technology, Float Discriminator, Intelligent Flush , Double Quantitative Technology To Ensure The Accuracy Of The Result.
Most popular related searches
hematology analyzer
whole blood
venous blood
blood sampling
hematologic
blood analysis
hematology
blood volume
low blood volume
- 20 parameters and 3 color histograms ( WBC, RBC, PLT ) display
- three detecting modes : VENOUS, CAPILLARY and PREDILUTES
- Throughput 60 samples/H
- Large 10.4’’ LCD colour display 640x480
- Memory for storage upto 35.000 results ( including histograms) , L.J curver, X , SD , CV
- Possibility to work in venous blood ( 9,6 μlt ) , capillary mode ( 9,6 μlt ) or prediluted ( 13 μlt )
- Aperture diameter WBC/RBC : 100/80 μm
- dilution rates : WBC whole blood1:304 ,capillary1:293 - RBC/PLT whole blood 1:44833 , capillary 1:44402
- precision RBC + 2% - WBC + 2,5% - Hct et MGV + 2% - HGB + 1,5%
- Carry over : WBC, RBC, HGB < 0.5% , PLT<1%
- Calibration mode : Relatively independent manual calibration and auto-calibration in three detecting modes
- Color Windows operating system, graphical buttons , supporting mouse operation
- High precision microanalysis technology, low consumption of blood sample volume ( only 9,6 μlt )
- Double convolution and intelligent fitting technology to ensure the accuracy of PLT counting
- High voltage zap with monitor in real time, recoil flush technology
- Automatically cleaning sample needle ( inside and outside)
- Intelligent auto detection and maintenance functions
- Intelligent float discriminator, manual adjustment
- Automatic alarm for inadequate reagents and fully enclosed reagent tubing
- Adjustable sample needles, suitable for various sample collection containers
- Microprocessor controlled , Autotest and automatic calibration with automatic temperature compensation
- Menu : Count, Sample Mode, Review, Quality Control, Setup, Service, Calibration, Help, Shutdown
- Built-in thermal printer , paper wide 58 mm
- multi-language SW , with 36 sets of alert messages
- comprehensive QC programs including L-J and X-B analysis ; up to 9 control lots- 30 run/ lot
- Outputs : 1 parallel interface, 2 PS/2 interfaces ( supporting networks) , 2 RS 232 ports , 2 USB , 1 VGA interface
- Power supply 100 to 240V 50/60 Hz, consumption 220 VA
- Environment : Temperature 15°C~35 °C – Humidity 30%~85%
- Dimensions 55x50x60H cm, weight 34 kg
