Dymax - Model 400 - Hand-Held Needle Closed-Valve System
Dymax Model 400 pneumatic, normally closed needle valve is designed to deliver precise dots or very fine beads of low- to medium-viscosity fluids such as light-curable adhesives and inks. The valve’s design is compact and lightweight, making it easy and comfortable to handle. Air pressure retracts the valve’s needle assembly from the seat allowing fluid to flow from the valve fluid inlet to the dispensing tip. When the air pressure is eliminated, the spring returns the needle back to its position, closing the fluid path and ending the dispense cycle. Accurate, repeatable dispensing can be achieved by utilizing the valve’s material flow adjustment to control the shot volume. The Model 400 is available in several system packages, paired with the Dymax DVC-345 bench-top valve controller and material reservoirs of various styles and sizes. Additional accessories, like a valve stand and various style dispense tips, are also available for this system.

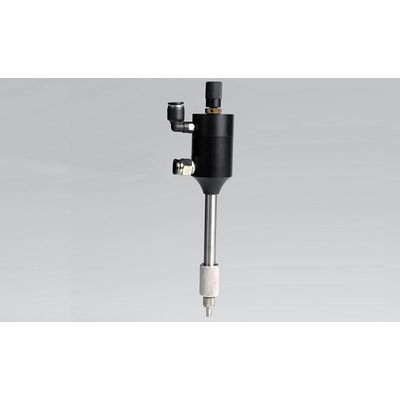

- Model 400 Handheld Needle Valve
- Selected Reservoir
- DVC-345 Digital Valve Controller
- Air Filter/Regulator – 0-100 psi (0-6.9 bar)
- Controller Air Line Kit
- Fluid Line Kit – 6′ of black 1/4 in (6.3 mm) OD tubing and 3/8 in – 1/4 in (9.5 mm – 6.3 mm) reducer and two 3/8 in – 1/4 in (9.5 mm – 6.3 mm) stem fitting inserts
- Valve Stand
- Reservoir Air Line Kit
- Fluid Line Kit – 6′ of black 3/8 in (9.5 mm) OD tubing
- Dispensing Tip Kit for Low Viscosity Fluids
- Air Precision Regulator – Includes three pressure gauges:
- 0-30 psi (0-2 bar) for very low- to medium-viscosity materials
- 0-60 psi (0-4.1 bar) for medium-viscosity materials
- 0-100 psi (0-6.9 bar) for high-viscosity materials
- Material flow adjustment on valve for precise control over dispensing volumes
- Shot-to-shot consistency when used with the DVC-345 controller
- Easy and comfortable to handle
- Lightweight, wand-style valve body
- Able to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)
- Compatible with most standard fluid packages and delivery systems
- For use with low to medium viscosity materials
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Property: Specifications
- Valve type: Pnuematic needle valve, normally closed
- Construction materials, wetted parts: Stainless Steel, Delrin, Silicone, PTFE non-stick coating
- Operating air pressure: 80-100 psi (5.5 – 6.9 bar)
- Activation: DVC-345 valve controller or 2-position, 4-way solenoid valve
- Maximum fluid pressure: 80 psi (5.5 bar)
- Electrical supply (controller): 110/220 VAC
- Valve air inlet thread: 10-32
- Valve fluid inlet thread: 1/8 in (3.2 mm) NPT
- Valve dimensions (H x D): 7.09 in x 1.25 in (3.22 cm x 0.57 cm)
- Valve weight: 0.35 lbs (0.16 kg)
- Warranty: 1 year from purchase
