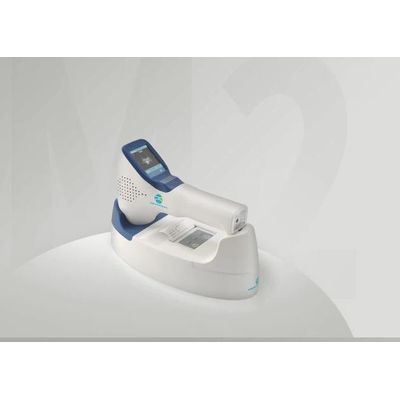

PeakSonic -Model M2 -Handheld Portable Bladder Volume Instrument
PeakSonic M2 is a handheld portable bladder volume instrument, which can be applied in the department of Surgery, Emergency, ICU, Obstetric, Gynecology, radiotherapy and nursing home. It can provide the basis for clinical catheterization, evaluate the post-void residual after patient urination, and make auxiliary diagnosis on the bladder and kidney diseases. The system is also suitable for patients of lower body disability or loss of auto-urination function, to confirm the proper timing of urination.
PeakSonic M2 series is a noninvasive bladder volume instrument developed by applying 2D ultrasound imaging technology and measurement principle. It is a handheld device composed of host and probe.
- Noninvasive urinary bladder volume measurement.
- Two modes selectionEasy and Expert Mode.
- Rapid scanning measurement result available within a few seconds.
- Easy to learn and use. Quick and precise bladder scan can be easily accomplished.
- One bladder scan image, patient information and bladder volume values are printable.
- User friendly capacitive touch screen.
- Built-in TF storage card.
- Voice annotation function available.
- Multiple language selection.
- Integrated fully sealed probe and host with 2.4-inch LCD display and touch screen.
- Big data storage spacemore than 10,000 cases can be stored.
- Chargeable battery, light-weighted, easy to carry, long operation and standby time.
- Patient information management software installed for reviewing, editing and printing.
- Patient history information review (only available with M1-W).
- WIFI connection to computer (only available with M1-W).
- Reduce unnecessary catheterization.
- Prevent CAUTI (Catheter Associated Urinary Tract Infection).
- Identify different types of urinary incontinence to determine the proper nursing.
- Beneficial for the post-operative recovery.
- Cost efficiency and save inspection time.
- No calibration required.
Modes selection: Easy and Expert and Intelligence. Expert is the default mode. When performing a pre-scan, the operator will observes the following exam results:
Expert Mode
- Display ultrasonic image.
- Illustrate 12 planes of real time ultrasonic images at the end of scanning.
Easy Mode
- Display a cross-section view of the inspected bladder.
- Illustrate 12 planes of cross-section sketches at the end of scanning.
Intelligence Mode
- Display a real time bladder scan projection position.
- Illustrate 12 planes of the real time ultrasonic images at the end of scanning.
Unique Characteristics
PeakSonic M2 series bladder scanner has the functions of multi-mode, easy operation, large amount of data storage, historical data review, wireless transmission, etc.
- Capacitive touch screen
- Data entry by virtual keyboard or voice annotation
- Wireless bluetooth printing
- Wi-Fi data transfer & >1k patient records review (M1-W only)
- Modes of scan: 3D scan
- Probe frequency: 2.5MHZ
- Measure volume: 0-999ml
- Display & control: Touch screen
- Operation Mode: Easy, Expert & Intelligence mode
- Language selection: Multiple language
- Battery capacity: 2600 mAh
- Print mode: Bluetooth printing
- Data transmission: USB/Wi-Fi(M2-W only)
- Data storage: Built-in TF card
- Continuous scanning time: 2hrs and 30 mins
- Standby time: >= 5 hours
- Accuracy: Error ±7%,±7ml
