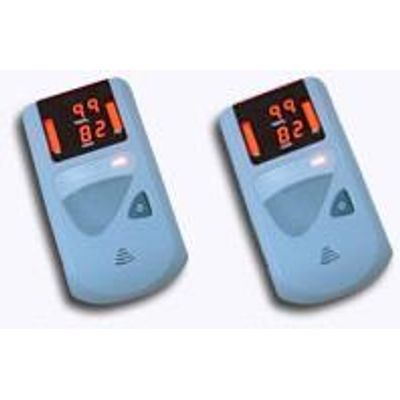

Mediaid - Model 30 and 30B - Handheld Pulse Oximeter

• Light weight, Compact and Portable design fits easily into lab coat pocket
• Bright LED displays indicate oxygen saturation and pulse rate from any angle and in most lighting conditions
• Unique averaging sequencing technique updates values and provides faster response times
• Continuous battery condition indicator
• 2 Bar graph displays for Pulse Amplitude and Perfusion Quality indication
• Pulse Oximeter with bar graphs ideal for Spot Checking
• Available in two battery versions- Lithium Ion Battery M30- 18 hours & “AAA” Alkaline Batteries M30B- 17 hours

• Display: Two 3-digit, 7-segment LED for %SpO2 and Pulse Rate; Two 10-segment LED bar graph for Pulse Amplitude and Perfusion Quality
• Resolution: SpO2: 1%; Pulse: 1 BPM
• Range: SpO2: 0 – 100%; Pulse: 25 – 250 BPM
• Reading Accuracy: SpO2: 100 – 70%, ± 2%; Less than 70%, unspecified; Pulse: 25 – 250 BPM, ± 2 BPM or 2% (whichever is greater)

Electrical Ratings

• Charging Voltage: 9 V DC 750 mA
• Battery Type: Model 30: Rechargeable Lithium Ion; Model 30B: 6 nos. of `AAA` size Alkaline Batteries
• Battery Run Time: Model 30: 18 hours of operation; Model 30B: 17hours of operation

• Mediaid Pulse Oximetry sensors with Compushield® Connector

• Dimensions: 5.5 in L x 3 in W x 1.1 in H; (14 cm L x 7.6 cm W x 2.7 cm H)
• Weight: 7.05 oz. (200 grams) without sensor

• Atmospheric Pressure: 770 – 282 mmHg; 1026 - 377 hPa
• Humidity: 5 – 95% (non-condensing)
• Operating Temperature: 0 – 40 ºC
• Storage/Transport Temperature: -30 – 65 ºC
