HAUX-QUADRO System
From Medical Technology

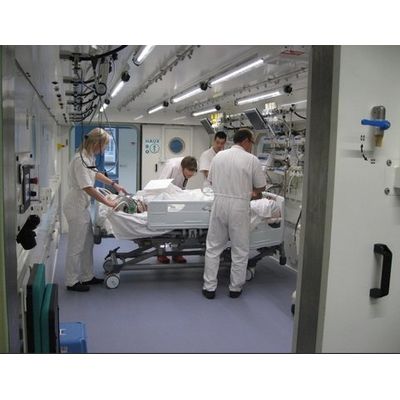

With the modular HAUX system it is possible to create a HAUX-QUADRO system that fits our customer's medical, technical and financial profile. The HAUX-QUADRO's rectangular design offers optimized use of space for both patients and operators compared to the cylindrical HAUX-STARMED series. A new worldwide benchmark for a HAUX-QUADRO system is our unit at the University Hospital at Lille, France. Our customers profit from our more than 40 years of experience and well over 1.500 hyperbaric HAUX systems installed worldwide.
Some highlights and special advantages of the HAUX-QUADRO family:
- Systems with main and antechamber as two-room chamber or with two main chambers as three or four-room chamber
- Chamber room dimensions: width range (inner clear width) from 2000 mm up to 3500 mm. length as needed, larger sizes on request
- Standard operation pressure of 2 bar (3 ATA) up to 5 bar (6 ATA) as special construction; higher pressures available on request
- Capacity for 2 to 24 patients and more (seated on comfortable patient seats or in wheelchair, reclining on intensive care bed or stretcher)
- Wide range of rectangular door designs, including widths suitable for ICU beds or extremely space-saving sliding door designs, manually or motor-operated
- HAUX special floor leveling system with threshold-free transition inside the chamber, for comfortable, same-level chamber access without step or ramp
- Excellent visual contact through ideally positioned windows with optimized viewing angle in the HAUX-MASTERWINDOW design in a variety of sizes, e.g. 300-700 mm
- User-friendly computer control systems HAUX-DECOMAT 4.0 and HAUX-DECOSUPPORT
- Comfortable seats for chamber patients
- Optional: Audio and video entertainment as well as heating/cooling-system HAUX-HEATMASTER/HAUX-COOLMASTER
- Quick system changeover from sitting to reclining patients with the HAUX-Roll-On/Roll-Off-system
- A wide range of modular medical equipment e.g. medical monitoring system HXMM, respirators, infusion pumps and suction systems
- Standard installation of specially designed and tested, highly effective fire-fighting systems HAUX-SPRAY-FOG and HAUX-SPRINKLER
- New oxygen-breathing system HAUX-OXYMASTER featuring low breathing resistance through injection support, with components made largely of Niro (stainless steel)
