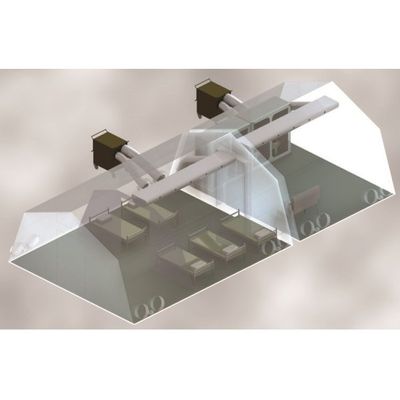

HDT - Model Base-X 303 or 305 - Medical Shelter System

Shelter systems are available in two sizes. Each shelter features an anteroom for patient observation and as a caregiver changing area, as well as a customized air delivery plenum. An optional Base-X 303 shelter is available for use as a hygiene room.

Our HDT EMAT-3T Bio Filter / ECU uses HEPA filtration and ultraviolet germicidal irradiation to capture, contain and neutralize biological contaminants from inside the shelter. It also introduces clean, comfortable air into the shelter, even in harsh weather conditions.

The HDT Medical Shelter System for patient isolation is fully customizable with furniture, hygiene equipment, curtains, plumbing and other accessories for the. Ask your HDT sales representative for details.

HDT Base-X 303 or 305 Shelter

• Interior clear span 18’ (5.49 m) wide; 15` (4.57 m), 25` (7.62 m) or 35` (10.67 m) long.
• Integrated anteroom functions as a caregiver changing area, patient observation space or pressure control room.
• Thermal liner for added energy efficiency in extreme weather conditions.
• Modular – shelters can be added in-line for additional capacity or separate functions.
• Pre-installed electrical wiring and HVAC plenum.
• Ready-Fold rigid flooring for extra durability.
• Standard anchorage or optional hard ground anchorage

EMAT-3T Unit (Integrated Bio-Filter and 3-ton ECU)

• Negative pressure medical isolation system that exceeds CDC guidelines for air changes per hour.
• HEPA filtration and ultraviolet irradiation capture, contain and neutralize biological contaminents.
• 36,000 BTU/H (10.55 kW) cooling capacity and 34,000 to 68,000 BTU/H heating capacity.
• All-weather durability.
• Adjustable air flow – 1,100 CFM (1,869 m3 /h) max.
