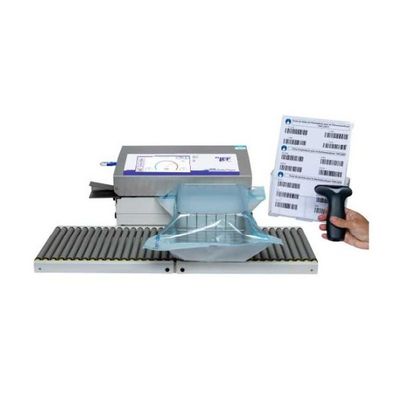

Anklefix Confort -Model e-Max/e-Maxp - Maxi Line -Heat Sealers Rotary Technology for Heavy Packaging
Ergonomics adapted to heavy and bulky loads. Optimal sealing quality on all types of pouches (Ultra. Cleantex, Integrapak. steam...) . (LAN-Ethernet/USB/Printer) . Compact design. Printing on pouches (e-MAX P).
- Type: Rotary heat sealer with printer
- Printout (texts & symbols): date, expiry date, users, batches, sealing counter, temperature, pressure, free text
- Standards : CE / CEM / Low voltage / HS Code 8422300000
- Standards: EN 868-5, DIN 58953-7
- Standards : EN ISO 11607-2
- Temperature calibration certificate (COFRAC)
- Microprocessor control
- USB output
- Barcode software & scanner for sealer programming (SCAN)
- Display 5.5" colour touch screen
- Multifunction intuitive menu (graphics, counters, informative messages, multilingual, alphanumeric keyboard...) Integrated digital maintenace notebook
- Sealings counter with reset
- Temperature range 20 - 230° C
- Pre-programmed temperatures
- Temperature regulation tolerance
- Automatic start & stop by photocell
- Safety: automatic start-up at set point
- Safety: overheating automatic stop (250°C)
- Safety: critical parameters control complying with ISO 11607-2 (temperature & pressure)
- Safety: automatic stop if critical parameters exceed limits
- 9 cm adjustable pouches guide {0-30 mm from edge)
- Sealing width 15 mm
- Sealing length unlimited
- Sealable pouches: steam/OE/alu/Tyvek®/ULTRA®...
- Main connection/frequency 230V- 50/60 Hz
- Power 400 W max.
- Hood / cover stainless steel
- Dimensions Lxlx H (mm) and adjustable in height + 10cm460x260x210
- Weight (Kg) 18
- Stainless steel front support tray (700 x 300 x 55 mm)
- Intelligent self-test of critical parameters with monitoring report (OQ), complies with ISO 11607-2 (PRINTER) - Optional
- Tracking and storage of all the sealing process parameters (ISO 11607-2) via USB stick - Optional
