Convergys - Model X5 - Hematology Analyzers

FromConvergent Technologies GmbH & Co. KG

SHARE

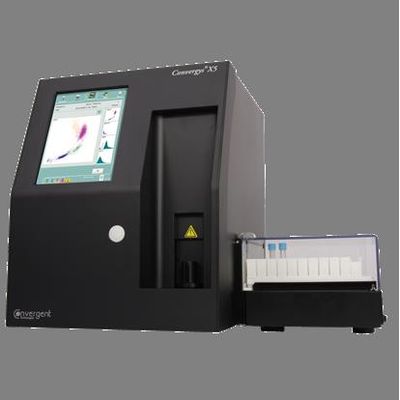

The Convergys® X5 is the high-end model of the Convergent Technologies Hematology Analyzers range. The Convergys® X5 offers an optimal solution for hospitals, clinics and practices, which require a high throughput 26 parameter analyzer with laser based optical measuring technology for precise and accurate 5-part differential results.

Most popular related searches

hematology analyzer

pathology diagnostic

hospital clinic

clinical practice

pediatric testing

hematology technology

26 parameter 5-part WBC differential
Laser scattering technology
100 µl sample volume of whole blood
25 μl optional small sample module (SSM) for pediatric use
60 tests per hour throughput
65 tests per hour throughput with optional Autosampler
Strict lysing process for best quality WBC differentiation
Integrated clog prevention system
800×600 dots color graphic touch LCD
Easy-to-use menu, based on embedded Windows 8.1 software
Large data storage for 100.000 records

Measured Parameters: CBC+5DIFF mode, 26 Parameters including 5-part WBC differential: WBC, LYM, MON, NEU, BAS, EOS, LYM %, MON %, NEU %, BAS %, EOS %, RBC, HGB, HCT, MCV, MCH, MCHC, RDWcv, RDWsd, PLT, PCT, MPV, P-LCC, P-LCR, PDWcv, PDWsd
Measuring principles: Volumetric impedance method for WBC and RBC, Spectrophotometry for HGB, Laser light scattering technology for 5-part WBC differential
Sampling method: Open and closed tube system with automatic sample rotor, Ceramic shear valve with 3 separated primary loops
Sample volume: 100 μl whole Blood
Clog prevention: High voltage pulse on aperture in each analysis cycle; chemical cleaning; high pressure back flush of aperture with Cleaner reagent
Quality Control: Unlimited QC levels, QC parameters include: mean, ± range, SD and CV for all measured and calculated parameters, 16- and 64-day Levey-Jennings charts, separate QC database
Calibration: 3, 5 or 7-measurement SW supported automatic mode and manual (factors) calibration
Flagging: Warning Flags, Pathological (diagnostic) flags, Lab limits (normal ranges)
Reagents alert (internal buffers for reagents), Instrument alerts
User interface: 800 x 600 dots, color graphic touch LCD, portrait layout, Easy-to-use,
menu driven user interface, embedded Windows 8.1
Host computer interface: USB ports, Ethernet port and RS-232 serial link
Data storage capacity: 100.000 records including flagging, 4diff and BAS scattergrams, RBC and PLT histograms
Printer Interface: Via USB port to any Windows 8.1 compatible printer
External keyboard and mouse: Via PS/2 or USB port
Autosampler: Optional Autosampler for Convergys® X5, with integrated Barcode scanner and Mixer
