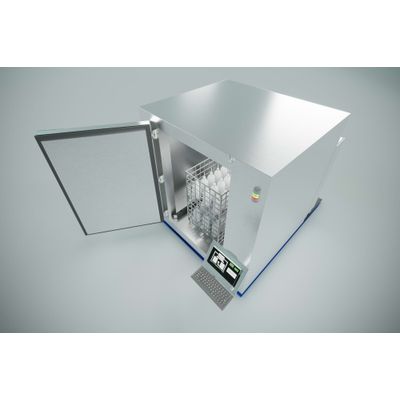

HOF PharmaBlastFreeze -High-Efficiency Freezer for Pharmaceutical Products
PharmaBlastFreeze is a specialized freezer designed for the pharmaceutical and biotechnology industries, offering a flexible temperature range from -30°C to -120°C. It supports the storage and rapid freezing of various pharmaceutical products in different packaging materials such as bags and bottles. This system employs an innovative chiller using refrigerant air R729, making it environmentally friendly and compliant with regulations such as the EU F-Gas Regulation. The compact stainless steel design ensures ease of cleaning and installation in non-classified or sterile areas. The system is equipped with an advanced automation and visualization system, compliant with FDA regulations (21 CFR, Part 11), enabling precise control and documentation of the freezing process. The water-cooled cold air chiller from Mirai Intex delivers high efficiency and reliable performance. The PharmaBlastFreeze features robust, low-maintenance technology, making it both durable and safe. Its minimal footprint and efficient cooling capabilities make it suitable for demanding pharmaceutical applications.
In the pharmaceutical and biotechnology industry, the focus in the production and processing of many products is on the associated low-temperature storage and transport. This also directly involves the controlled and homogeneous freezing of these products. Various options are available for freezing (e.g. blast freezers or plate freezers). Lower and lower temperatures and higher cooling rates are required to ensure that the products are handled in line with quality and requirements,</p
The PharmaBlastFreeze is a freezer for pallets and large containers of pharmaceutical products. Thanks to its compact design and large interior, the PharmaBlastFreeze can accommodate various packaging materials and can therefore be used universally. In addition to products in bag systems, bottle systems can also be easily processed and products can therefore be frozen in all common packaging materials.</p
The flexibly adjustable temperature range of -30 °C to -120 °C also offers customers the option of using the system depending on product requirements and therefore being able to freeze different products with different requirements in a targeted manner.
In order to fulfil the current legal and regulatory requirements and offer a future-proof design, the system uses an innovative chiller from Mirai Intex with the refrigerant air R729. This means that there are no restrictions due to, for example, the F-Gas Regulation and no safety requirements, as only air is used. By using this innovative technology, a wide temperature range with high cooling rates can be achieved with a compact system footprint.</p
The interior of the system is made entirely of stainless steel and is therefore easy to clean and fulfils the high requirements of the pharmaceutical and biotechnological environment. Thanks to its compact design, the PharmaBlastFreeze can be installed in non-classified rooms or integrated into the sterile area. The control panel is mounted directly on the system, making it easy for the system operator to handle.</p
To control the process, the system is equipped with a corresponding automation and visualisation system. This system complies with FDA requirements in accordance with 21 CFR, Part 11, whereby all process-relevant data such as batch reports and temperature curves are printed out in the form of a process report or forwarded to a higher-level system.
REFRIGERATION TECHNOLOGY
At low temperatures, the proven water-cooled cold air chiller from Mirai Intex is used. This is characterised by high efficiency and reliability in this area. Thanks to the air refrigerant (R729), the system is environmentally friendly and there are no restrictions or regulations imposed by the EU F-Gas Regulation and REACH.
MAXIMUM TEMPERATURE FLEXIBILITY
Flexible adjustment of the chamber temperature from -30 °C to -120 °C with a temperature accuracy of ± 0.5 °C. The chiller provides a high cooling capacity throughout.
HIGH FREEZING SPEED
Each product has the same freezing conditions at all times thanks to the high air circulation rates. In addition, the system can store energy and discharge it at short notice to increase performance.
SECURITY
Safety is permanently ensured by a monitoring system that continuously monitors the temperature and condition of the product. The refrigerant air means that there are no hazardous operating materials in the system. In addition, there are no special requirements for the installation location. A robust system technology makes the PharmaBlastFreeze a fail-safe and reliable freezer.
