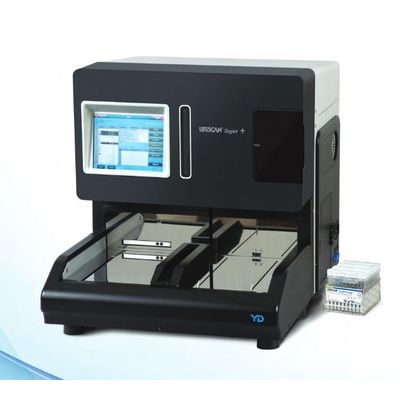

URiSCAN Super+ - High-end Fully Automated Urine Chemistry Analyzer
Touch screen LCD: Menu driven 8.4″ large color touch LCD for convenient operation; Display the real view of the test strip image during operation. Cassette room: Double-sealed Super Strip Cassette for extended on-board stability; New Strip delivery System : Elevator system for strip loadeing. Interface: Various interfaces such ae 4 USB, RS232C, serial interface, 2 PS/2, parallel, Ethernet; Easy inegration into the lab and hospital network system. Single probe: Detect liquid level and aspirate together. Sample loading: Capable of loading up to 100 samples at once. Refractometer & Turbidimeter with CCD Image Scanner: Built in refractometer for S.G and Turbidimeter for turbidity; Accurate result by CCD Image Scanner. Syringe pump: Adoption of high performance 5ml syringe pump for precise sample treatment. Integrated barcode reader for sample ID: Apply advanced barcode reader(300 scans/sec). Waste pump: Built-in waste pump for effective discharge of waste liquid.
STAT Position
Enable to test urgent sample during normal operation.
Able to test Microalbumin and Creatinine in 13 parameter Super+ strip Cassette
- Test parameters : Blood,Bilirubin, Creatinene, Urobilinogen, Ketones, Protein, Nitrite, Microalbumin, Glucose, pH, Leukocytes, Ascorbic acid, Color S.G(By Refractometer), Clarity(By Turbidimeter)
- Accurate and reliable performance by using proven URISCAN test striips
- Load 400 tests at one time using ready-to-use Super+ Strip Cassette
- Double-sealed Super Strip Cassette for extended on-board stability
Unique cassette type reagent supply system simplifies loading and operation
- Continuous reagent roll offers high reliability of strip transport
- Load the maximum of 400 tests at once for optimized reagent replacement time
- Cassette type reagent format minimizes handling time
Easily integrates into the lab and hospital network system via Ethernet.
Using standard 10-Position rack ensures easy lab integration
Color LCD touch screen with friendly GUI makes the analyzer ease of use, quick and convenient
Dimension : 536mm(W) × 686mm(D) × 535mm(H)
Weight : 70 Kg
Voltage : 110~240V (50/60Hz), free voltage
Rated power : 636W
Measurement Method
- Test type : reflectance photometers + CCD camera image capture
- Throughput : 200 tests per hour
- Test parameters : Blood, Bilirubin, Creatinine, UroBilinogen, Ketones, Protein, Nitrite, Microalbumin, Glucose, pH, Leukocytes, Ascorbic acid, Color S.G(By Refractometer), Clarity(By Turbidimeter)
- Sensor : Camera+CCD color image sensor
- Memory capacity : more than 1,000,000 patient test results, 500 control results
- Light source : LED
Display : 8.4” LCD touch screen
Reagent volume : 400 samples at once
Sample volume : Min 1.5 ~ 2.0mL
Sample Rack : Standard 10-position rack
Sample Loading : 100 samples at one time
Stat sample : Hanling 1 stat in the rack
Operating conditions : Temperature : 15 ~ 30?
Humidity : 20 ~ 80%
Approval : CE
