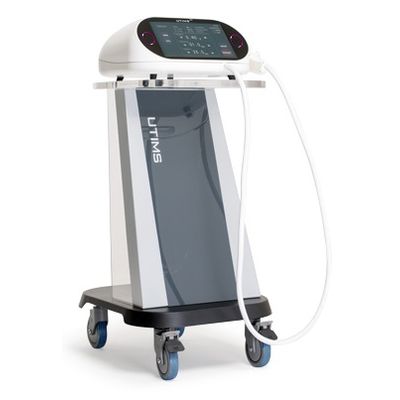

Model UTIMS A3 - High Intensity Focused Ultrasound (HIFU Face and Body)
UTIMS A3. A HIFU Device at the service of the Face and Body. UTIMS A3 is a HIFU device that allows you to perform several treatments on the body and face. Skin toning, radiance, skin rejuvenation, non-invasive lifting of the face, eye contour, body reshaping..., all these indications can be treated thanks to a change of transducers on the handpiece. Easy to use, UTIMS A3 enables highly precise medical procedures that use heat from focused high-intensity ultrasound energy to destroy diseased or damaged tissue by ablation. The ultrasound beams are focused on the diseased tissue, and due to the significant transfer of energy, the temperature can rise by 65° to 85° C, thus destroying the diseased tissue by coagulation necrosis.
Higher temperature levels are generally avoided to prevent boiling of liquids inside the fabric. HIFU allows temperature elevation in the SMAS (Superficial Muscular Aponeurotic System), fascia, deep dermis and subcutaneous fibrous tissue. When the temperature increases by more than 47°C (threshold of protein denaturation), a coagulation zone is generated. The area is filled with tissue or muscle on the periphery, the skin becomes elastic and wrinkles are reduced. a coagulation zone is generated.
1. Very high maneuverability of the handpieces: ( Thinner handpieces and transducers than on competing devices. Improved comfort by the energy delivery mode of the transducers. Device designed to limit interference during treatment and specially studied for left-handed and right-handed.) 2. Pedal simplifying the management of ultrasound emissions as an option. 3. Time saving by using different transducers and simple interface. 4. LCD touch screen facilitating navigation in the interface. 5. Transducers allowing treatment area up to 30mm. 6. Variable frequency and depth transducers depending on the area to be treated.
1. Stable focal points (heat lesion) for better results during treatment. - 2. Vertical short line heat lesion for safer treatment even at high intensity. - 3. Reduction of lesions in the deep dermis. - 4. Simulated heat lesions with 3 preliminary stages of control. - 4. Certified and extensively tested transducers with Phantom HIFU security system. - 5. Safety and reduced risk of side effects (pain and burns) thanks to the CENTERLESS HIFU system.
Faced with the competition, UTIMS transducers stand out for their stability and shapes. Thanks to a patented Ceramic manufacturing process that allows an egg-shaped and concentrated heat lesion, the transducers can achieve a safer and more efficient result. Indeed, the more the heat injury has a vertical and long shape, the more it risks causing accidental burns around the eyes. The high frequencies of HIFU provide plenty of energy and quality heat lesion. It is therefore safer and more effective to use high frequencies on the shallow layers of the skin. Very few companies in the world manage to market such transducers. UTIMS uses for this several types of transducers of 3, 4, 7 or 10 MHz and a depth sensor of 1.5mm. The transducers are practical,
HIFU devices are generally dangerous and difficult to control. Excessive use of heat lesions can cause side effects like burns. The main advantage of the HIFU system therefore lies in the controlled and precise emission of frequencies. The heat injury sensor system THLVS developed for this purpose over 10 years in cooperation with university researchers allows the safety of transducers to be assessed. The main component of the system called “Phantom” is produced under strict quality control.
CENTERLESS HIFU is an innovative HIFU transducer system using a special concave piezoelectric ceramic with a hole in the center. A tube is inserted through the hole to prevent the generation of ultrasound in the center of the ceramic. The ultrasound passes through the water in the transducer and microbubbles are formed (cavitation effect). With the concave shape of piezoelectric ceramics, these micro-bubbles collect on the surface of the ceramic which interferes in the transmission of ultrasonic energy. CENTERLESS HIFU evacuates the microbubbles caused by the cavitation effect thanks to the central hole at the back of the ceramic. This process allows the total energy generated by the piezoelectric ceramic to be concentrated in the skin, thus improving the safety of ultrasound energy. Most devices lower the ultrasound energy to reduce side effects. However, lowering the energy reduces heat lesion size and transducer performance. CENTERLESS HIFU solves the problem of creating excessive heat on the skin by concentrating ultrasound energy in the center of the piezoelectric ceramic. According to studies, there is a reduction in side effects and an improvement in the performance of thermal injury by more than 50%. The new HIFU transducers with a ceramic surface with a hollow center allow a more targeted and egg-shaped heat lesion, capable of providing an even safer result and better treatment. lowering energy reduces heat lesion size and transducer performance. CENTERLESS HIFU solves the problem of creating excessive heat on the skin by concentrating ultrasound energy in the center of the piezoelectric ceramic. According to studies, there is a reduction in side effects and an improvement in the performance of thermal injury by more than 50%. The new HIFU transducers with a ceramic surface with a hollow center allow a more targeted and egg-shaped heat lesion, capable of providing an even safer result and better treatment. lowering energy reduces heat lesion size and transducer performance. CENTERLESS HIFU solves the problem of creating excessive heat on the skin by concentrating ultrasound energy in the center of the piezoelectric ceramic. According to studies, there is a reduction in side effects and an improvement in the performance of thermal injury by more than 50%. The new HIFU transducers with a ceramic surface with a hollow center allow a more targeted and egg-shaped heat lesion, capable of providing an even safer result and better treatment. According to studies, there is a reduction in side effects and an improvement in the performance of thermal injury by more than 50%. The new HIFU transducers with a ceramic surface with a hollow center allow a more targeted and egg-shaped heat lesion, capable of providing an even safer result and better treatment. According to studies, there is a reduction in side effects and an improvement in the performance of thermal injury by more than 50%. The new HIFU transducers with a ceramic surface with a hollow center allow a more targeted and egg-shaped heat lesion, capable of providing an even safer result and better treatment.
Energy type: HIFU (High Intensity Focused Ultrasound) - Rated voltage: AC 100~264V, 50/60Hz - Power consumption: 80~150 VA - Power: 0.1 ~ 2.0 J (MAX. ~ 4.0 J) - Spacing: 1.0 ~5.0mm. - Energy processed: less than 2.0 J. - Screen: 10-inch touchscreen LCD. Transducer types: 6 face CENTERLESS transducers. / 3 CENTERLESS body transducers.
