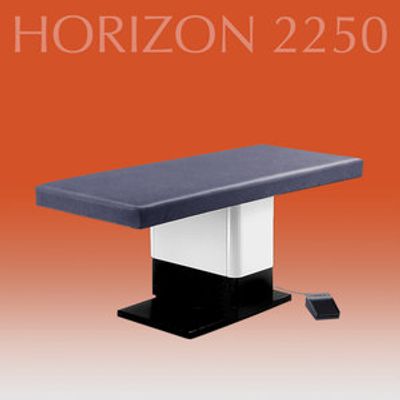

ENOCHS - Model HORIZON 2250 - High-Low Treatment Table

SHARE

The Horizon 2250 High-Low Treatment Table is engineered to meet the needs of medical facilities that serve a diverse patient population, including those with mobility challenges, such as wheelchair-bound, elderly, or obese patients. The table features a power height adjustment mechanism that ensures smooth transitions, accommodating the specific requirements of patients and medical staff. Its generous 32-inch extra-wide upholstered top is designed for patient comfort, supported by a robust, fully welded steel base which includes no plastic components, emphasizing durability and stability. With a patient load capacity of up to 500 pounds, the table integrates easy-to-clean surfaces composed of high-density foam for enhanced comfort and hygiene. Safety features include overload protection via a circuit breaker rather than fuses and an SELV foot control system. The table complies with UL60601-1, IEC/EN 60601-1, and CAN/CSA-C22.2 No. 601.1 standards and is shipped fully assembled and ready for use.

Most popular related searches

patient loading

obesity patient

healthcare facility

patient support

The Horizon 2250 is an ideal choice for medical facilities requiring low access for patient populations, which include disabled or geriatric patients in wheelchairs or with walking aids and obese patients. The table’s smooth power height adjustment and the 32” extra wide upholstered top are two distinctive features designed for patient comfort as well as physician and staff convenience.

4-YEAR Warranty
Patient Load: 500 lbs. evenly distributed on top surface
Power Height Adjustment
32" Extra Wide Top for patient comfort
Easy-to-Clean One-Piece Upholstered Top with 1.5" high density foam
Fully Welded All Steel Base Construction - NO PLASTIC
Overload Protection: Circuit Breaker - NO FUSES
SELV Foot Control
Table Ships Complete - NO ASSEMBLY REQUIRED
Classified by UL to UL60601-1, IEC/EN 60601-1, CAN/CSA-C22.2 No. 601.1

Base construction: Fully welded all steel base
Power System: Electro-mechanical provides smooth and quiet movement
Power Adjustments: Height: 23” to 39”
Foot Control: “Hands free”, standard on every table, SELV
Hand Control: Not available on this model
Couch Top: One-piece upholstered top
Perineal Recess: Not available on this model
Pelvic Tilt: Not available on this model
Leg Extension: Not available on this model
Irrigation Basin: Not available on this model
Electrical Outlets: Not available on this model
Instrument Warmer: Not available on this model
Stirrups: Not available on this model
Storage: Not available on this model Total Storage Space: N/A
Paper Roll Holder: Accommodates 18” or 21” paper widths
Accessories: Not available on this model
Mains Power Entry: IEC connection, internal circuit breaker with reset
Duty Cycle: Table: 1 minute ON / 9 minutes OFF Receptacles: N/A Instrument Warming Drawer: N/A
Ratings: Table: 115V 60 Hz 10 amps Receptacles: N/A Total Receptacle Load: N/A
Table Dimensions: Length: 72” Width: 32” Height: 23” – 39”
Table Weight: 350 lbs.
Patient Load: 500 lbs. evenly distributed on main couch
