Mµ-Coat -High Performance PTFE Enhanced Coating Material
FromCambus Medical

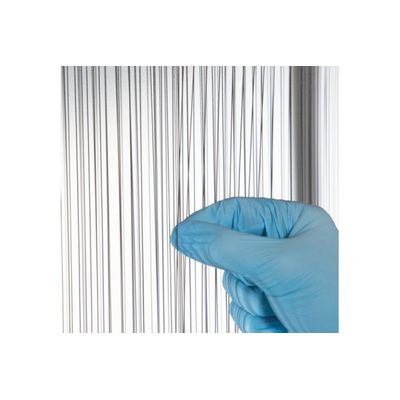

Mμ-Coat™ is a high performance PTFE enhanced coating material which is applied using our state of the art proprietary application technology – Cambus Coat™. When cured on the substrate, it forms a lubricious and non-stick matrix which is ideal for coating guidewires and hypotube-based products.
Most popular related searches
Benefits
- Conformal Coating
- Low Coefficient of Friction
- – Improves hypotube trackability
- Excellent Adhesion
- Tight Tolerances
- PFOA-free
- Passed stringent Biocompatibility Testing in accordance with ISO standard 10993-1 for short-term contact of less than 24 hours with human body,
– Cytotoxicity
– Hemocompatibility: Direct & In-direct contact
Base Materials
- Stainless Steel
- Nitinol (limitations apply)
- Other alloys on request
Tube/Wire Diameter Range
- OD: 0.010”~0.250” or 0.25mm~6.50mm
Coating Thickness
- Average coating thickness of 0.0002” (0.005mm) per side is consistently achieved
- Typical Range: 0.0002”– 0.0009”
(0.005 μm to 0.023 μm)
Coating Colours
- Black
- Blue
- Green on request
Applications
- Guidewires
- Marker bands
- Coated Hypotube Shafts for
- Cardiovascular devices
- Neurovascular devices
- Peripheral vascular devices
