Model Centrius -Highest Standard, Multi-Application Mattress Replacement And Overlay System.
Multiple Compatibility: Integrated pressure monitoring mattress overlay & replacement system for all your essential needs. Simple but powerful, the Carilex Centrius is a cost effective therapy support surface that offers a combination of dynamic and static modes to meet individual patient’s need. Work- ing with the state-of-the-art IPS technology, Centrius’ intelligent pressure monitoring system keeps an eye on the mattress 24 hours a day, ensuring the patient receives pressure relief or pressure redistribution at all times. Adjustable comfort settings for different body types, low pressure alert in case of abnormal pressure drop or power failure. Comes with 4 Directional Stretch coverlet for durability and comfort. Centrius is the perfect example of affordable quality, it provides all the essential features needed for optimal therapy and much more.
The IPS Technology, Intelligent Pressure Sensing Technology, responds to patient movements on mattress by automatically adjusting internal mattress pressure, which allows Centrius to regulate airflow and continuously provide a total envelopment for our patients. Carilex is the first brand in the industry to master IPS. This gives us more experience and vast knowledge in the technology that is years ahead of our competitors.
The pump is suitable for three different mattress
- Centrius + Entrix overlay to for medium - high risk patients
- Centrius + Lux to for very high risk patients
- Centrius + FIT to for very high risk patients
- 1 Intelligent pressure sensing
Responds to patient movements on mattress by automatically adjusting internal mattress pres- sure.
- Power failure alarm
Audible and visual power failure alarms to alert caregivers in case of abnormal power outage.
- Memory recall
Restores to the previous systems automatically after abnormal power outage.
- Low pressure alarm
Audible and visible alert to notify when abnormal internal pressure/power failure occurs.
- Alarm mute
Disable the audible indicator system.
- Max Inflate
Rapidly hyper-inflates the mattress providing a firm and convenient surface for nursing tasks.
- Hands Free Automatic System
Simple selection of “Soft” , “Medium” or “Firm” fully-automated comfort modes, with auto up- right support.
- Dynamic / CLP Therapy Modes
Provides both dynamic and CLP therapy functions to meet individual patient’s need.
- Cable management
Comes with pocket on the side for no fuss cable and cord management.
- Quick connect coupling
Provides an easy connection between power unit and mattress.
- CPR
Deflates the entire mattress for emergency.
- Patient Envelopment
Envelop and off load patient body mass by expanding the therapy contact area and depth.
- Four Directional Stretch Coverlet
High quality washable, four-way stretch, shear force reduction, while providing excellent mois- ture permeability.
- Optional Foam Base
Extra 2’’ foam protection for patient support.
-
Alternating Pressure Mode
-
Durable Material
-
Easy Cleaning
-
Lightweight Power Unit
-
Mattress Overlay
-
Mattress Replacement
-
MAX Inflation
-
Memory Recall
-
Multiple Mattress Sizes
-
Pressure Redistribution
-
Whisper Quiet
-
5" Air Cell
-
7" Air Cell
-
8" Air Cell

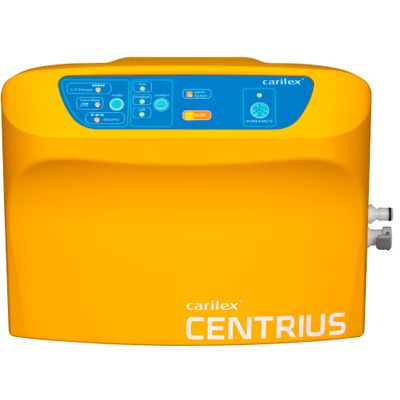

Power Unit Model : REF : SR363
. Power Input : 220-240Vac 50Hz 0.2A
. Power Consumption : Max 15W
. Weight : Power Unit : 2.8Kg
Mattress Set : 6kg, 7kg, 9kg
. Dimension :
Power Unit : 295 x 255 x 120mm ( W x H x D )
Mattress Set :
32” x 80” x 5” ( 82 x 200 x 13 cm )
36” x 80” x 5” ( 90 x 200 x 13 cm )
32” x 80” x 7” ( 82 x 200 x 18 cm )
36” x 80” x 7” ( 90 x 200 x 18 cm )
32” x 80” x 8” ( 82 x 200 x 20 cm )
36” x 80” x 8” ( 90 x 200 x 20 cm )
other size upon request
. Agency Approval :IEC/EN 60601-1, ANSI/AAMI ES60601-1, AS/NZS IEC 60601.1
. Operating Condition :
Temperture : 5°C to 40°C, Humidity : 15% to 90%
. Transportation & Storage Condition :
Temperture : -25°C to 70°C, Humidity : 0% to 90%
. Weight Capacity : Entrix: 150kg / Lux: 200kg / FIT: 250kg
. This Power Unit is not AP/APG protected
