Patholab - Histopathology Fume Hood Patho Histo

SHARE

Histopathology fume hood Patho Histo is a system designed to limit the exposure of health worker to chemical risks and to protect from biological risks. It is made for the safe containment within it of any toxic vapors emanated during the handling and processing of cyto-histological specimens.

Most popular related searches
histology specimens
histopathology
verticalization equipment

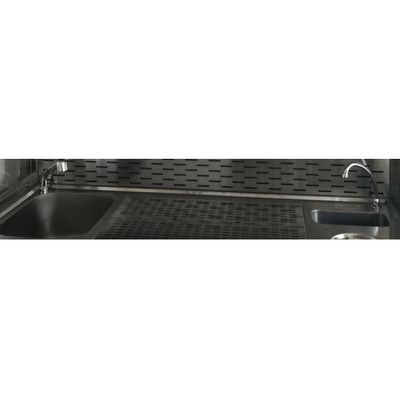

WORK SURFACE

With reference to UNI EN 14175 standard, work surface is delimited from three sides on the board containing liquids and closed by an automatic vertical sliding sash equipped with a safety brake.

On request it is possible to install: a sink with a water spout and mixer tap; an opening to insert a container for hazardous waste; a removable shower for cleaning the entire work station.

ASPIRATION

Air purification is guaranteed by two granular activated carbon filters highly effective in removal efficiencies of formaldehyde and two additional pre-filters in synthetic fiber which separate larger particles. For more efficient operation air is drawn in from the front side and top part of the hood, increasing exhausting flow when the front sash is raised, at the same way ensuring higher operator safety. Filter condition is evaluated by electronic control unit which carries the information about operating time and information from sensor which determines the clogging of the filters.

COMMAND AND CONTROL SYSTEM

A Fitted Touch Screen control panel  on the front part of the fume hood allows to:

  • to control the motor-driven front safety glass
  • to regulate exhaust air flow
  • to turn on or off the internal lights of the hood
  • to view the operating time
DIMENSIONS

PATHO HISTO 180   L 180 x P 85 x H 240 cm
PATHO HISTO 150   L 150 x P 85 x H 240 cm
PATHO HISTO 130   L 130 x P 85 x H 240 cm

  • Made in AISI 304 stainless steel
  • Lighting: 2 LED spot lights and an LED bar above the work surface
  • Storage shelf in the front for the entire width of the hood
  • Differential switch to protect the instrument
  • Set of filters is mounted on the front to make access easier
