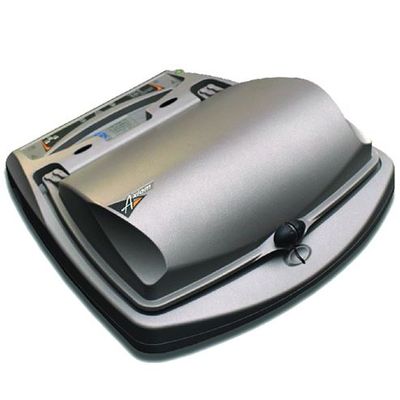

Audioscan Axiom -Hit and Speech Map System
FromE3 Diagnostics
A complete REM, HIT, and speech map system, the Audioscan Axiom helps educate and motivate patients by simplifying the fitting process. With exclusive speechmap software, you can ensure the best fit by utilizing a properly controlled and analyzed speech signal. It also allows you to visually display a patient’s hearing loss and the value of their hearing instrument in an easy-to-understand chart.
Most popular related searches
General
- Power source 100 – 240V, 47 – 63Hz, 1.35A
- Dimensions: 31.75 x 31.12 x 10.8 cm (12.5 x 12.25 x 4.25 in.)
- Weight 3.45 kg (7.6 lbs )
- Display User-supplied, connected via HDMI or network.
- REM Speakers 13.5 x 9.5 x 9.5 cm
- Probe modules dual probe and ref. microphones
- Analyzer frequency range 200 – 8000 Hz
- Analyzer filter parameters tones, warble 1/12 octave speech, noise 1/3 octave
- Analyzer display range 200 – 8000 Hz
- Measurement dynamic range 30 – 135 dB SPL (200 – 2500 Hz) 30 – 140 dB SPL (2500 – 8000 Hz)
- Speech & Speech-like stimuli calibrated speech (level and spectrum), ISTS, band-limited and s/sh for verifying frequency lowering, live speech Broadband noise stimuli tone burst, pseudo-pink noise
- Narrowband stimuli warble sawtooth modulated +/- 3% over 128 ms
- User supplied stimuli WAV file, auto level Stimulus level range 40 – 85 dB SPL in 5 dB steps
TEST BOX (HIT) - per IEC 60118/ANSI3.22
- Test box speakers 1 – 30.5 mm round
- Working space 152.4 cm3
- Isolation @1kHz >25dB
- Analyzer frequency range 200 – 8000 Hz
- Analyzer filter parameters tones 1/12 octave speech, noise 1/3 octave
- Analyzer display range 200 – 8000 Hz
- Speech & Speech-like stimuli calibrated speech (level and spectrum), ISTS, band-limited and s/sh for verifying frequency lowering, live speech Broadband noise stimuli tone burst, pseudo-pink noise
- Broadband noise stimuli tone burst, pseudo-pink noise
- Narrowband stimuli pure tone
- User supplied stimuli WAV file, auto level
- Test stimulus levels 40 – 90 dB in 5 dB steps
