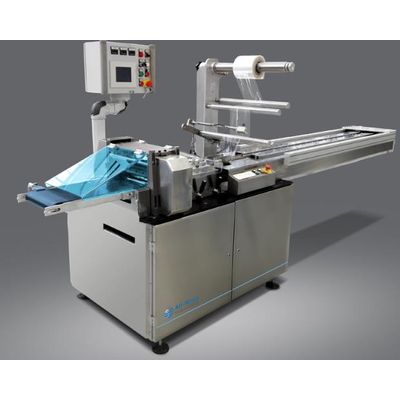

All-Wrap -Model H3SS 160/270 -Horizontal Flow Wrapping Machine
Packaging material:All thermo sealable (Polypropylene complex and all laminate foil). Cold seal paper also possible.
Reel:
- Ø up to 350 mm;
- Width from 60 up to 600 mm
Pouch width:
- H3SS 160: 30 to 150 mm
- H3SS 270: 50 to 250 mm
Pouch length:
- H3SS 160: 50 mm à 500 mm
- H3SS 270: 100 mm à 700 mm
Product thickness:
- H3SS 160: Up to 60 mm
- H3SS 270: Up to 90mm
Production rate:
- Up to 150 cycles/min
Length format changeover:
- By loading pre-recorded programs
Standard features:
- Brushless motorisation
- Eye-mark registration for pre-printed
- material
- Two or three sets of wheels depending
- type of products to be packed.
Options:
- Zig-zag cutting
- Die cut for holes
- Stainless steel version, notch,
- auto-tensioning regulation
- Several kinds of printing units : inkjet,
- thermal transfer, flexo...
- Automatic feeders , other options :
- consult us
- Studies and special adaptations:
- Please consult us
Net weight:
- 500 to 700 kg
Machine dimensions:
- L 3,80 m x W 1,00 x H 1,65 m
