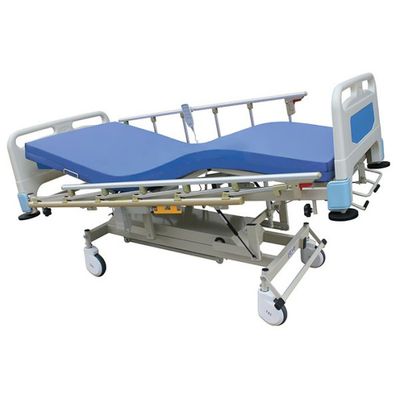

LKL -Hospital Electrical Bed
Four section bed. Include manual trendelenburg and reverse Trendelenburg. All parts are made by tooling to ensure uniform quality. Steel construction finishing with scratch and chip resistant of hard epoxy powder coating. Electric motorize bed with smooth and quite operation . Detachable head and foot boards. Mobile on 4 x 150mm diameter castors with central locking system with steer, free and brake. Hi-Lo, backrest & kneerest controlled by hand set control. Auto contour backrest and kneerest adjust simultaneously. 4 provisions for IV pole. 2 drainage bag holders. 4 provisions for monkey pole. With 4 corners rotating bumpers.
Most popular related searches
Technical Specification
- Working capacity: 180kg
- Auto contour
- Hi-Lo: 460-850mm
- Backrest: 0° - 75°
- Kneerest: 0° - 25°
- Legrest: 0° - 45°
- Trendelenburg: 0° - 12°
- Reverse Trendelenburg: 0° - 6°
- Overall Approx Dim(mm): 2115(L) x 1013(W)
Electrical System
- DC-actuator system (TUV & UL approved & EC60601-1)
- 24VDC out-put
- Voltage: 220-240V; 50Hz-60Hz
- Built in back-up battery
Optional Accessories
- CPR Release Lever(Model BA7770-T+ CPR)
- Backrest withX-Ray Translucent Base(Model BA7770-TX)
- With bed extension(Approx. 254mm length)(Model BA7770-TEX)
- IV pole with 2 hooks(BX301-Stainless steel)
- Monkey pulley (BX910)
- Orthopedic Frame
