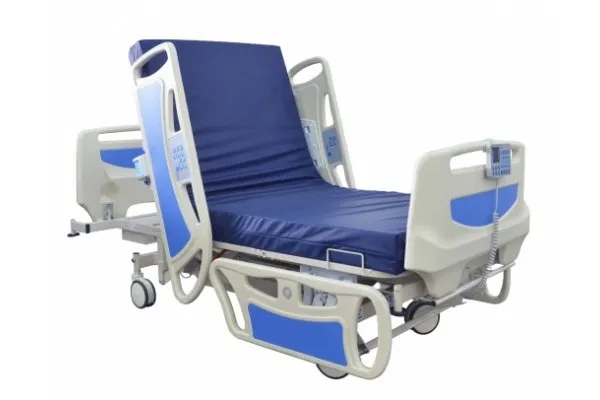

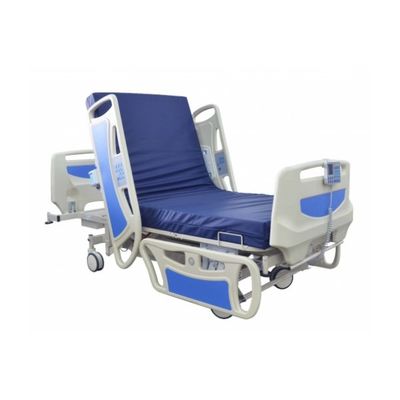

LKL -Hospital ICU/CCU Electrical Bed

Product Features

• Zero scale function
• Bed exit alarm system
• Under Bed Light
• Digital Weighing Scale with segment LCD display and control by handset
• Backrest side rail with embedded control buttons
• Quick CPR release lever for flattening the backrest located at both sides of the bed
• Auto contour function to avoid patients slipping down while performing cardiac chair position
• Hi-Lo, Backrest, Kneerest, Trendelenburg and Reverse Trendelenburg by electrical motorized
• Backrest with X-Ray Radio Translucent base complete with X-Ray cassette tray
• PE Head & Foot boards with locking mechanism for easy attachment, detachment and can be cleaned easily
• Split fold down PE safety side rails with one-hand operation
• Perforated mattress support base
• Steel bed frame with scratch and chip resistant baked epoxy powder coating
• Four high-quality 150mm diameter German Twinwheel with central locking system
• 6 provisions for IV pole attachment
• 4 provisions for monkey pole
• 2 Drainage bag holder provided
• PU bumper at 4 corners
• IV drip pole storage

Electrical System

• DC-actuator system (TUV & UL approval & EC60601-1)
• 24 VDC with built in back-up battery
• Input Voltage: 220 - 240V; 50Hz - 60Hz

 Technical Specifications

• Backrest: 0° - 70°
• Legrest: 0° - 35°
• Kneerest: 0° - 20°
• Trendelenburg & Reverse Trendelenburg: -15° to +15°
• Auto contour
• Cardiac Chair Position
• Vascular Position
• Overall Approx Dim(mm): 2273(L) x 1060(W) x 488 - 788(H)

Accessories Included

• Pressure reducing mattress x 1unit (BX415) Mattress Approx. Dim (mm): 1980(L) x 914(W) x 125(H)
• Telescopic IV Drip Pole with 2 hooks (Stainless steel) x 1 unit
• Oxygen Cylinder Holder x 1 unit

Optional Accessories

• Monkey pulley (BX910)
• Portable monitor/Defibrillator tray (C-DEFIB-08)
• Orthopedic Frame
