Freefix - Humeral Plating Set
The next generation of distal and midshaft humerus fracture management. A true single, fixed angle construct: TiBeam® technology connects the medial and lateral plates to allow for compression across the trochlea.
Most popular related searches
- Use trajectory guide to place k-wire through the most distal holes of the medial and lateral plate.
- Drill through both plates with the 3.7mm cannulated drill.
- Overdrill with the 4.0mm stop drill.
- Use the insertion tool and T-10 driver (not pictured) to insert the female component through the plate.
- Introduce male component using T-10 driver (not pictured).
- Thread the male component into the female and continue advancing until the desired compression is achieved.
Distal humerus plate combinations with TiBeam® Technology
Addressing multiple fracture patterns, surgeon preference, and patient anatomy
Lateral Capitellar
70mm, 100mm, 130mm, 160mm
Medial Direct
75mm, 105mm, 135mm, 165mm
Lateral Direct
85mm, 115mm
Medial Direct
75mm, 105mm, 135mm, 165mm
Lateral Helical
85mm, 115mm, 145mm, 175mm
Medial Direct
75mm, 105mm, 135mm, 165mm

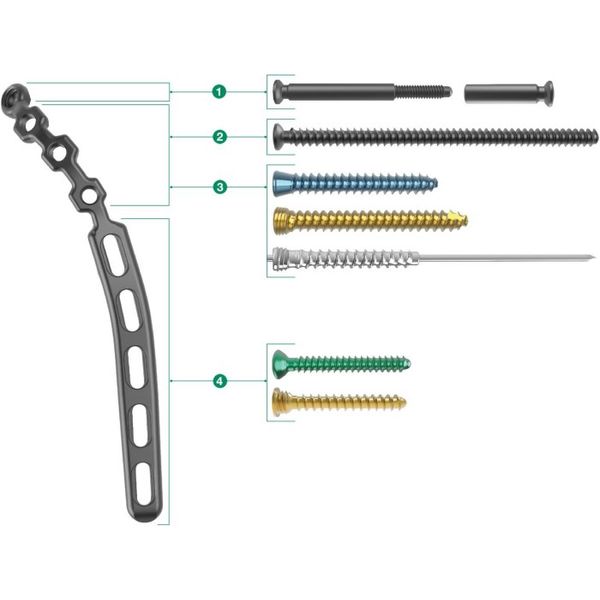

- TiBeam® Male: 40mm – 80mm construct lengths
TiBeam® Female - Distal Trochlea Compression: 20mm – 80mm lengths
- 2.7mm & 3.5mm Compression: 10mm – 70mm lengths
2.7mm & 3.5mm Locking: 10mm – 70mm lengths
3.0mm Polyaxial Locking: 10mm – 70mm lengths - 3.5mm FREEFIX® Compression: 14mm – 44mm lengths
3.5mm FREEFIX® Locking: 14mm – 44mm lengths
