Solartrichter -Hybrid-Island-System (H-I-S)

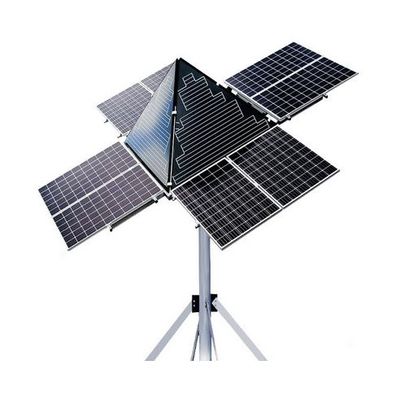

The Solartrichter consists of a support frame, a pyramid and wings with solar modules as well as a control module. The integrated control module (MLD sensors) controls the system using generated reference values for the highest light irradiation in each case. The sensors continuously measure the angle and intensity of the incident sunlight and also take reflected and diffuse light into account.
The wings of the wing support surfaces are foldable and modularly expandable. This allows the potential yield of the system to be increased from 3,000 kWh per year to up to 21,000 kWh. The pyramid installed in the center of the wings enables maximum yield, especially in diffuse light. The wing surfaces can be folded into a cube shape for easy transport – making the system ideal for transportation.
- Nominal power depending on type class: 3.000 – 9.000 Wp
- Module type: Mono, Poly, Bi-facial
- Max. module area: 25 –40 m²
- Max. modules: 10 –20 St.
- Rotation angle east-west: 300°
- Angle of Elevation: 20 –90°
- Installation dimensions: 4.200 mm x 2.000 mm
- Radius / max. height: 3.200 mm / 6.100 mm
- Weight (kg): 980 –1300
- Self-consumption per year: 7 –14 kWh
- Daily yield depending on location: up to 75 kWh
