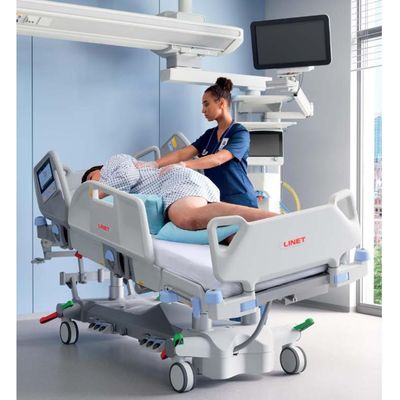

Multicare -Model X -ICU Bed

• External Dimensions in Standard Bed Position (length x width): 215 cm x 105 cm
• Safety Siderail Height above Mattress support platform: 45 cm (maximum)
• Bed Extension: 0 cm - 22 cm
• Maximum Dimensions of Mattress (length x width): 214 cm x 87,5 cm
• Maximum Mattress Height: 23 cm
• Clearance in Standard Position: 15 cm
• Minimum-Maximum Mattress support platform Height above floor (without Mattress): 44 cm - 82 cm
• Maximum Backrest Angle: 70°
• Maximum Thighrest Angle: 30°
• Maximum Calfrest Angle: 38°
• Maximum Lateral Tilt Angle: +30°/-30°
• Trendelenburg Angle: 13°
• Antitrendelenburg Angle: 16°
• Bed Safe Working Load (SWL): 250 kg

• Lower limb load reduction in patient mobilization thanks to Mobi-Lift (1)
• 33% Less effort needed when moving patient from the bed to a stretcher thanks to lateral tilt (2)
• 67% Decrease in force needed to turn the patient with lateral tilt (1)

New generation of LINET`s premium ICU solution
