Marco -Model iON -Imaging System

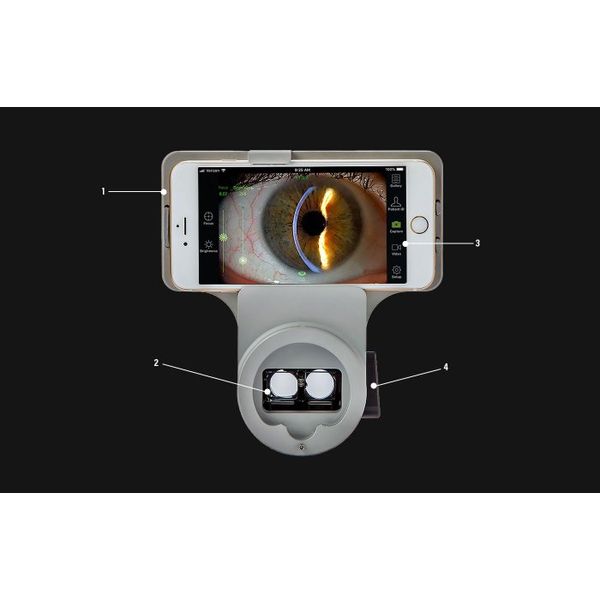

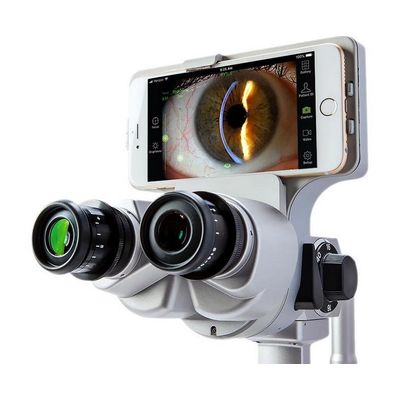

Slit lamp imaging is redefined with our iON? imaging system by combining a new intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology. “iON”: intuitive, optimized, and networked – an imaging system for every exam room, to rapidly capture, integrate, and educate every diagnosis. Slit lamp not included.
Ion compatible slit lamps include:
- Marco: Ultra G2, G4, G5, G5-Zoom, M2, M4, M5, B2
- Topcon: SL-D2, SL-D301, SL-D4, SL-D7, SL-D701, SL-2ED, SL-7E, SL-2G, SL-8Z
- Zeiss: 100/16, 20SL & 30SL
- Woodlyn: HR3; HR5 or SL9803x
- Elan: 3 & Elan 5 Slit Lamps
- CSO: SL990 & 9900(LED); SL980 & 9800
- Haag Streit: BQ 900
- Burton: 2000, SL-3MH & SL-3MZ, SL-860
- Keeler: KSL-H & KSL-Z
- Ibex: 5-Step
- Nidek: SL1800
- S4Optik: SL-Z3, SL-Z5, SL-ZZ, SL-H3, SL-H5, SL-HZ, H5 Elite, MW-50
- Huvitz: HS-5000; HS-5500; HS-7000; HS-7500 (adapter required)
- Reichert: Xcel 200, 250, 255, 400 & 455 (requires adapter)
Utilizing the world’s best known and most user friendly OS. Simple but powerful proprietary slit lamp imaging app designed by ophthalmic photographers. Easily capture high resolution video or still images. Diagnose, image, integrate & educate in seconds. Update software via the App Store. Simply start the App and you’re ready to capture.
All controls at your fingertips in heads-up display. App specifically designed for anterior segment imaging with patient demographics. Speed of acquisition, integration to network and education for patients. Unique “intra-optics” beam-splitter/adapter/mount. Accommodates most “parallel style” slit lamps. Harnesses the power of Apple® with its exclusive HDR, “Focus Pixel” technology & more!
Imaging capability in every exam room. Wirelessly display your images on your exam room monitors. Images instantly available in NAVIS-EX or for uploading to your EHR or PACS. Archive, view, and share images immediately in the Cloud. Bluetooth foot control or joystick capture
- Marco: Ultra G2, G4, G5, G5-Zoom, M2, M4, M5, B2
- Topcon: SL-D2, SL-D301, SL-D4, SL-D7, SL-D701, SL-2ED, SL-7E, SL-2G, SL-8Z
- Zeiss: 100/16, 20SL & 30SL
- Woodlyn: HR3; HR5 or SL9803x
- Elan: 3 & Elan 5 Slit Lamps
- CSO: SL990 & 9900(LED); SL980 & 9800
- Haag Streit: BQ 900
- Burton: 2000, SL-3MH & SL-3MZ, SL-860
- Keeler: KSL-H & KSL-Z
- Ibex: 5-Step
- Nidek: SL1800
- S4Optik: SL-Z3, SL-Z5, SL-ZZ, SL-H3, SL-H5, SL-HZ, H5 Elite, MW-50
- Huvitz: HS-5000; HS-5500; HS-7000; HS-7500 (adapter required)
- Reichert: Xcel 200, 250, 255, 400 & 455 (requires adapter)
Slit lamp imaging is redefined with our Ion? imaging system by combining a new intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology.
Hardware
- Type: Intra-Optics Beam-Splitter/Adapter
- Beam-Splitter: 2-Position Lever; Down=100% to oculars; Up=70% to Camera/30% to oculars
- Dimensions: 7″ x 2.5″ x 6.5″
- Weight: 3 lbs
- Image Capture Via: Bluetooth activated Foot-Switch or Joystick Button (Marco Slit Lamps only)
- Camera*: Apple iPhone 12 (12MP)
Software
- Operating System: Apple® iOS
- Export To: Local Network; Cloud Storage & iOS/Photos
- Capture Modes: Still image or HD Video
- Security: HIPAA Compliant; Password Protected; AES Encryption
- Imaging Technology: Apple®’s HDR, Focus Pixel, Optical Image Stabilization technology
- Networking: Via Wi-Fi Connection
- Included In The Box: ion Beam Splitter/Adapter, ion Imaging App, Bluetooth Control Unit, Power Adapter with 2-USB ports, 6′ USB Cable, Footswitch with 10′ Cable, 10′ Lightning iPhone Charging Cable, 10 Adhesive Cable Tie Mounts, 14 4″ Cable Ties, 2 1″ x 1″ Adhesive Velcro and 2 Vinyl Lens Covers
