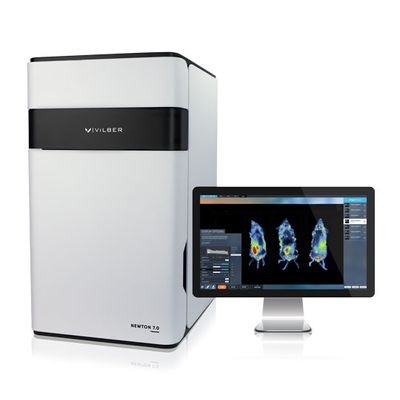

Vilber Newton -Model 7.0 -In Vivo Imaging Device
The unrivaled NEWTON 7.0 is ideal for bioluminescence and fluorescence imaging of in vivo, ex vivo and in vitro applications.
- Thanks to the unique Fluorescence illumination architecture, the NEWTON 7.0 accommodates 8 excitation channels in the Visible (RGB) and Near-Infrared (NIR) spectrums. Signals can be overlaid so that several reporters can be visualized simultaneously in the same animal.
- A large number of molecular reagents and fluorophores can be used such as GFP, YFP, FITC, DAPI, mCHERRY, Alexa Fluor® 680, 700, 750, Cy® 3, 5, 5.5, DyeLight, IRDye® 800CW, VivoTrack 680, VivoTag 750 etc…
Superior Quantitative Results
Ultimate linearity for precise protein quantification over the full dynamic range.
Multispectral Imaging
Ultra-low noise imaging thanks to a dual camera amplifier architecture.
Custom Made V.070 Lens
Fusion custom made lens for enhanced sensitivity and sharpness.
Narrow Bandpass Filters
Time to get the image is drastically reduced and precious antibody can be saved.
Imaging Versatility
- Monitoring the development of tumors and infections
- Tracking cell migration
- Targeting the Biodistribution of drugs, molecules and nanoparticles
- Visualization of vasculature and microcirculation
Performance
- Ultimate sensitivity with the widest lens aperture f/0.70
- 1” Scientific Grade CCD Camera and -90°C cooling
- Bioluminescence detection : femtogram level
- Fluorescence detection : picogram level
- 3D Optical Tomography
Ease Of Use
- Intuitive & user-friendly software interface
- One click to get the image
- Auto-exposure and automatic illumination controls
- Easy to clean
Animals Management
- Up to 5 mice capacity
- Heated animal bed (+37°C)
- EQUAFLOW™ breathers to deliver equal gas to each nose cone and prevent unwanted animals awakening
- Automatic Active Gas Scavengers
- Compatible with the BIOSTHESIA gas anesthesia station
Designed by molecular biologists, the NEWTON 7.0 Software has rich features and guides you into the advanced functions in a very ergonomically designed user interface. The simple and self-understandable menu is ideal in a multi-user environment : just one click is necessary to get the optimum image.
Dive into the comprehensive image analysis modules to easily quantify signal measurements, and get the maximum quantification data out of your samples in a few steps.
