Model WZ-50/4-150 - India Indonesia Hospital medical use 15Nm3/h oxygen compresser 150bar Oxygen Filling Compressor
What`s the usage of oxygen gas keepwin compressor? Oxygen keepwin compressor for filling oxygen cylinders: For filling oxygen cylinder from oxygen systems, generally the pressure is high. This is done in a totally oil-free environment. Oxygen keepwin compressor for medical use: Oxygen from a PSA or liquid oxygen source is compressed with one or two stages from 1 barg (14.5 psig) to 30 barg (435 psig) for use directly by patients. The oxygen is kept pure by the oxygen keepwin compressor so that it is safe for medical use. These oxygen compressors are usually relatively small, in the 3 to 18.5 kW range
Oxygen for industrial processes is generally higher volume, 3,000 Nm3/hr (1,900 SCFM).
The pressures can be medium and low, sometimes up to 150 barg (2175 psig), 200barg (2900psig).
Is available for VSA applications at steel mills, paper plants, water treatment plants.
The oxygen compressors are one, two, or three stages and in the power range of 50 kW up to 375 kW.

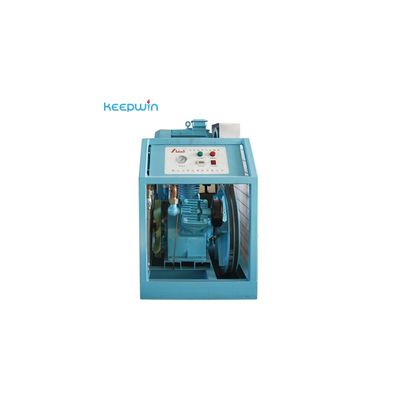

Product Name: Medical Oxygen Gas Booster Compressor for O2 gas Cylinder Filling
Model: WZ-50/4-150
Compress medium: 90%~99% Oxygen gas
Type: W type, Water cooled, Three stages only, Oil-free Piston Oxygen Filling Compressor;
Capacity flow rate: 50Nm3/h
Suction pressure: 0.4Mpa(G)
Discharge pressure: 15.0Mpa(G)
Driven method: Belt driven
Suction temperature: <=35℃
Transmission temperature: <=Water inlet temperature+15℃
Water inlet temperature: <=25℃
Cooling type: Water cooled ,2.4t/h water consumption
Water pressure: 0.3Mpa
Water inlet & outlet pipe: Rc1'
Speed: 680r/min
Gas inlet interface: 51mm, 304Lweld pipe
Gas outlet interface: 18mm /304L weld pipe
Noise Level: <=85dB(A) within 1 meter distance
Dimension: 1880*1250*1300mm
N.W Weight: 590kgs
- Totally 100% oil free type gas compressor, cylinder no need oil lubrication, ensure cylinder 100% no oil content.
- Suitable compressing for Oxygen gas, Hydrogen gas, Nitrogen gas, Helium gas, Argon gas, CO2 gas, Air gas, Biogas, Methane gas and other special gas
- No pollution, keep same purity to inlet gas
- Reliable and top quality, comparable with USA RIX brand.
- Top cost performance, low maintenance cost, and easy operation, only need to change piston ring
- 4000 hours piston ring working life,1500-2000 hours working life for final stage ring 7
- Top brand motor, and can be specially pointed, like Simense brand
- Supply Japan market, quality approval by Japan strictly system
- CE approval
- The gas compressor carefully designed and manufactured for 2Mpa, 4Mpa,10Mpa, 15Mpa, 20MPa-30MPa pressure etc.
- The device has a small size, lightweight, easy maintenance, and friendly at moving and operating.
- Output gas non-toxic, odorless. Suitable for filling high-pressure air displacement and small and medium-sized gas station
