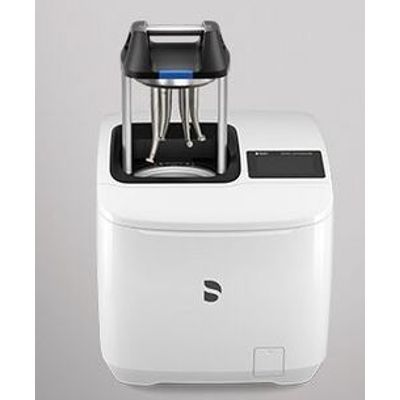

Dentsply-Sirona -Model DAC Universal D -Infection Control Systems
Switch off infection control risks: Switch on DAC Universal. Comply with infection control standards at the touch of a button and avoid cross contamination: Completely safe with DAC Universal. Your patients and employees can rely on this all-round protection and put their complete trust in the treatment with reprocessed and thermally disinfected instruments.
DAC Universal - Take advantage of the many convenient features
New design, touch display with intuitive user interface, guided maintenance workflow Check & Clean. Process safety through automatic program selection. LAN interface for electronical documentation.
Low operating and consumption costs – no use of cleaning and disinfection chemicals and chemoindicators. Low investment costs in instruments thanks to cooling at the end of the process and therefore quick return to service.
Six instruments in approx. 15 minutes: Internal and external cleaning, lubrication (if needed) and disinfection* of straight and contra-angle handpieces, turbines, ultrasonic handpieces and tips, nozzles of multifunctional syringes and powder jet devices as well as powder jet handpieces.
Legal certainty
Cleaning and disinfection process which can be validated. Cleaning and disinfection process in accordance with EN ISO 15883-1/-2
Blue Lid
For the reprocessing of straight and contra-angle handpieces, turbines and contra-angle handpiece heads.
Reprocessing of rotating instruments in a single cycle with the Program Blue Lid
Internal cleaning with cold water
1. Preliminary cleaning
2. Leak test
3. Internal cleaning: The internal spray and drive channels are rinsed with water
Fully automated lubrication
4. Lubrication: The drive channels are lubricated (sufficient for the next treatment)
External cleaning with cold water
5. External cleaning: Pulse wash procedure (multi-cyclical cleaning method)
Disinfection*
6. Heating up to 134°C
7. Back-flush: Saturated steam is directed through the instruments
8. Disinfection*: 0.5 min. at 134°C
Cooling
9. Cooling
10. The lid opens slightly
11. The lid can now be opened fully
Green Lid
For reprocessing of ultrasonic / sonic handpieces and tips, nozzles of multifunctional syringes and powder jet devices as well as powder jet handpieces.
Reprocessing with the Green Lid
(Identical process to the Blue Lid, but without lubrication)
- Internal cleaning with cold water
- External cleaning with cold water
- Disinfection
- Cooling
Adapters
For straight and contra-angle handpieces
Sirona T1 Classic/TE Adapter
ISO/INTRAmatic® Adapter
KaVo and Bien-Air contra-angle handpiece adapter
