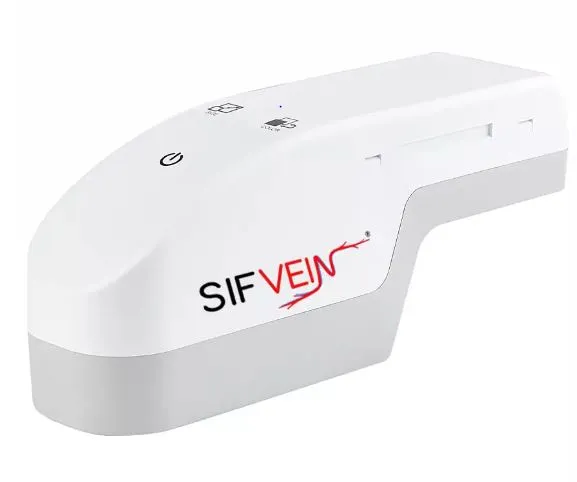

SIFVEIN -Model 1.0 -Infrared Vein Viewer
The Infrared Vein Viewer: SIFVEIN-1.0 can be applied to all patients, particularly to patients whose vein is not easily detected. It can be used regardless of skin color and it visualizes a vein over 10-mm depth. Also, SIFVEIN-1.0 uses near-infrared LED to reduce users’ eye strain, which is also safe for patients. Since it visualizes the same vein wall thickness as the actual view on the skin surface, the vein can be observed in real-time. It is useful for both patients and clinicians.
- Projection Distance: 40cm ± 3 cm
- Image Size: Large, Medium, Small
- Image Color: White, Black, Green
- Operation mode: Normal, HD
- Calibration Image: calibrated (± 200um)
- Input Power: DC 15 / 3 A
- Battery Run Time: 170 min
- Battery Charge Time: 120 min
- Portable Battery Run Time: < 12 hours
- Size: 225(l) × 63(w) × 96(h) mm
- Weight: 420g
- Input Power: DC 15 / 3 A
- Battery Run Time: 170 min
- Battery Charge Time: 120 min
- Portable Battery Run Time: < 12 hours
- Continuous Usage Time while Charging: < 12 hours
- Dual Battery Protection Circuit is applied
Product performance:
- Projection Distance: 40cm ± 3 cm
- Image Size: Large, Medium, Small
- Image Color: White, Black, Green
- Operation mode: Normal, HD
- Calibration Image: calibrated (± 200um)
- Size: 225(l) × 63(w) × 96(h) mm
- Weight: 420g
Additional Functions:
- System Status Information
- Temperature, Charging Time, Available Time, Used Time
- Express an image of veins with an accuracy of ±200um by calibration
Color:
You can choose one from three different colors: White background – Black veins; Black background – Green veins; and Green background – Black veins.
Image Size :
There are small, medium, and large images, and you can choose one at your convenience.
HD Mode:
HD Mode is suitable for long-term inpatients or special patients including infants, or for observing small veins in the face. If the output screen is in HD mode, the HD icon is displayed on the screen.
