KDS -Model 100Y -Infusion Pumps
FromKD Scientific

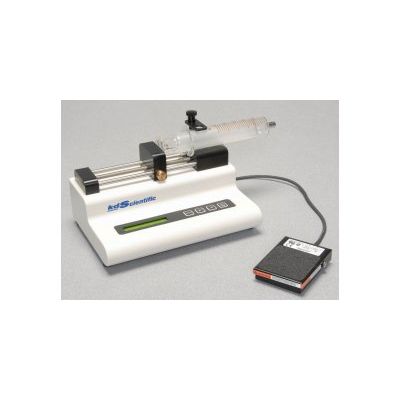

A new version of the rugged KDS 100 can now be remotely triggered with a footswitch or external switch. Starting and stopping dispense or infusion can be automated or remotely activated.
Most popular related searches
- Single syringe 10 µl to 60 ml, any manufacturer
- Simple menu-driven setup:
- select syringe size from displayed table
- set dispense volume
- set dispense flow rate
- Easy to read bright, backlight display
- Dispense volume displayed and has automatic shutoff at completion
- Volume and flow rate units (µl/hr or ml/hr) are selected automatically based on syringe size
- Last settings stored in permanent memory
- Button release of drive nut for easy syringe installation
- Choice of run / stop after a power interruption
- Pump Type: Infusion
- Max. No. of Syringes: One
- Syringe Size: 10 µl to 60 ml
- Dimensions: 9 x 6 x 5 in.
- 23 x 15 x 12 cm
- Weight: 4.5 lb (2 kg)
- Linear Force: 20 lb (9 kg) min.
- Advance Per Microstep: 0.529 micron (1/2 step)
- Max Step Rate (1/2 Step): 400 steps/sec
- Min Step Rate: 1 step / 30 sec.
- Accuracy: ± < 1%
- Reproducibility: ± 0.1%
- Audible Alarm: (Optional)
