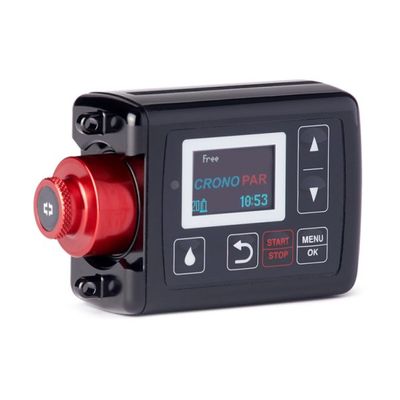

Cane - Model CRONO PAR 4-20 - Infusion Pumps
FromCanè S.p.A.
Pump dimensions : 76 x 49 x 29 mm (138 x 49 x 29 mm with protective wings). Pump weight : 127 g (4.46 oz.), including battery. Battery : Lithium CR 123A 3V (battery life approx. 100 infusions). Single tank : Dedicated, with 10 and 20 ml capacity and "Luer-Lock" universal safety fitting. Administrable volumes : Selectable, from 1 to 20 ml with 1 ml increments.
Most popular related searches
- Flow rate in Free mode (F1, F2, F3) :
- Programmable from:
- 0.05 ml/h to 1.00 ml/h with 0.01 ml/h increments;
- 1.00 ml/h to 2.00 ml/h with 0.02 ml/h increments;
- F2 and F3 may also be programmed to 0.00 ml/h or to OFF (flow rate display disabled).
- Selectable flow rates in Free mode : 3, all programmable
- Flow rate in Auto mode (F1, F2, F3) :
- Programmable from:
- 0.05 ml/h to 1.00 ml/h with 0.01 ml/h increments;
- 1.00 ml/h to 2.00 ml/h with 0.02 ml/h increments;
- Selectable flow rates in Auto mode : 4, of which 3 are programmable and one is fixed to 0 ml/h.
- Bolus dose volume : Programmable from 0.00 to 2.0 ml.
- Interval between bolus doses : Programmable from 5 minutes to 24 hours. May be disabled.
- Flow rate accuracy : +/-2%.
- Occlusion pressure : 3 selectable values. The pump is set to PL2 (4.0 bar +/- 2.0).
- Post-occlusion bolus : Max. 1.0 ml
- Electronic circuit : Managed by twin microcontrollers for improved safety.
- Storage : All selected values are automatically stored in a memory which is retained even if the battery is removed from the device.
- Display : Colour graphical OLED display, 96x64 pixels.
- Motor : Coreless DC motor. The microcontroller controls the rotation speed using an infrared encoder.
- Keypad lock : Two configurable levels.
- Safety circuits : They ensure that the device is correctly operational. In case of a fault they generate acoustic signals and messages shown on the display.
- Pump degree of protection : IP 42
- Features : Ambulatory infusion pump with reservoir, infusion pump carry-case, elastic belt, collar strap, fabric case, 2 batteries, battery cover opening tool and user guide.
- Warranty : Two years for manufacturing defects.
