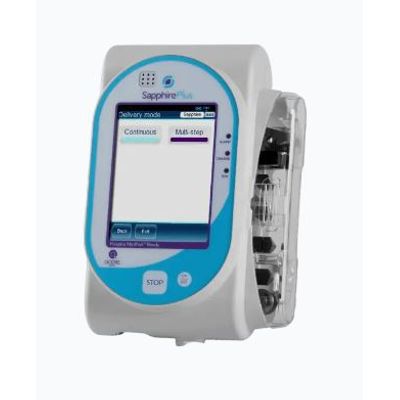

Sapphire -Model Plus -Infusion System
The Sapphire Plus infusion system provides a targeted solution for the users in the hospital market, offering ease of use and reliability of the entire Sapphire product family, with special concern for the clinical and ambulatory environments, as well as the pre-hospital medical ground transportation. The Sapphire Plus pump is used by high authorization level users and technicians in hospitals, in transition to and from hospitals, alternate sites and patient homes, and in an ambulatory environment.
Most popular related searches
infusion system
icu medical
drug library
infusion mode
infusion pump
hospital market
hospital medical
medical visualization
medical transport
infusion continuous
- Pump Type: Volumetric, single-channel, touch screen pump, Q Core Flow Control
- Multi-Therapy Infusion Modes: Continuous and Multi-step
- Dimensions: (H x W x D) 143 x 96 x 49 mm (5.63 x 3.78 x 1.93 in)
- Weight: 433 g (15.3 oz) without battery
- Touch Screen: 3.2” color portrait QVGA (64K colors)
- Battery: Rechargeable Li-lon battery 7.4V 1960mA/h
- Communication protocol: Wireless Interface conforms to IEEE802.11 a/b/g/n for connecting to the local area network
- Degree of Protection Against Ingress of Water and Dust: IP24 splash/dust standard according to IEC 60601-1-11
- Data storage: Maximum log sizes, program data, drug library and configuration data, including wireless configuration
- Drug library: Libraries developed on ICU medical MedNet
- Visual indication: Indicators of connection status to ICU medical MedNet and to wireless network
- Power Source: AC adaptor 100 – 240 VAC 50 – 60 Hz
- Volume (VTBI): 0.1 – 99.9 mL with increments of 0.1 mL; 100-9999 with increments of 1 mL
- Flow Rate: ± 2.5% according to IEC 60601-2-24
- KVO Rate: Up to 20 mL/h with increments of 0.1 mL/h
- Wireless interface: Connection to local area networks via a Wireless communication
- Disposable Set
- Downstream Occlusion: Up to 17.4 PSI (1.2 Bar)
- Prime: Manual or automatic priming (600 or 900 mL/h)
- Disposable Set: Automatic anti-free-flow set
- Background diagnostics: Integrity checks on the data
- ICU medical MedNet Server Interaction: Communication to ICU medical MedNet server, including identification of the pump, configurationof
- Hospira MedNet-related settings on the Infusion System, logging of events to Hospira MedNet server as they occur, download of drug
- library, remote monitoring and control, auto-programming
