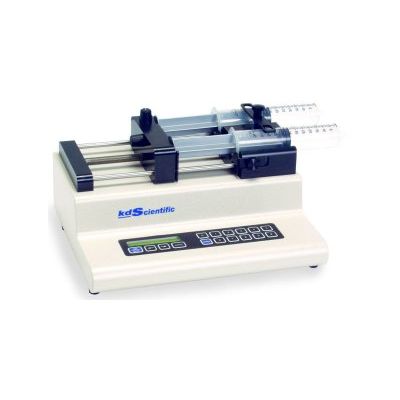

KD Scientific - Model KDS210 - Infusion Withdrawal Pump
FromKD Scientific
The KDS210 offers you more advanced features than any other infusion / withdrawal pump in its price range – including five operating modes plus independent rate and volume settings for both infusion and withdrawal.
Most popular related searches
- Holds two syringes, 10 µl to 140 ml each
- Backlit LCD display
- Knob locks/unlocks drive block for effortless, drag-free adjustment
- Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
- Continuous dispense volume display
- Preset volume control and automatic shut-off
- Settings can be reviewed or changed during operation
- Stall detection
- Choice of unit selection
- Last settings stored in permanent memory
- Built-in RS232C interface for computer "daisy chaining" up to 100 pumps
- TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
- Independent rate and volume settings for infusion and withdrawal
- Multiple mode selection:
- Infusion
- Withdrawal
- Infusion then withdrawal
- Withdrawal then infusion
- Continuous cycle
- Optional multi-step keypad programmable feature (KDS210P)
- Pump Type: Infusion/Withdrawal
- Max. No. of Syringes: Two
- Syringe Size: 10 µl to 140 ml
- Dimensions:
- 11 x 9 x 5.5 in.
- 28 x 23 x 14 cm
- Weight: 9 lb (4 kg)
- Linear Force: 40 lb (18 kg)
- Advance Per Microstep: 0.165 micron (1/16 step)
- Max Step Rate (1/2 Step): 1600/sec
- Min Step Rate: 1 step / 100 sec.
- Accuracy: ± < 1%
- Reproducibility: ± 0.1%
- Audible Alarm: (Optional)
