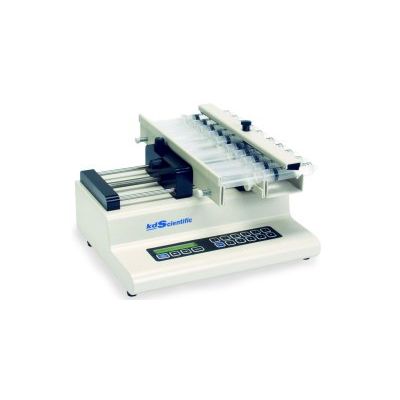

KD Scientific - Model KDS230 - Infusion Withdrawal Pump
FromKD Scientific
Ideal for applications requiring multiple syringes, the KDS230 is an adaptation of the KDS210. The pump operates exactly like a KDS210, but has been modified to hold up to 10 syringes.
Most popular related searches
- Multiple syringe holder:
- One to ten syringes, 10 µl - 10 ml
- One to six syringes, 20 ml - 60 ml
- One to four syringes, 100 ml - 140 ml
- Withdrawal then infusion
- Backlit LCD display
- Knob locks/unlocks drive block for effortless, drag-free adjustment
- Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
- Continuous dispense volume display
- Preset volume control and automatic shut-off
- Settings can be reviewed or changed during operation
- Stall detection
- Choice of unit selection
- Last settings stored in permanent memory
- Built-in RS-232C interface for computer "daisy chaining" up to 100 pumps
- TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
- Independent rate and volume settings for infusion and withdrawal
- Multiple mode selection:
- Infusion
- Withdrawal
- Infusion then withdrawal
- Withdrawal then infusion
- Continuous cycle
- Optional keypad programmable feature (KDS230P)
- Pump Type: Infusion / Withdrawal
- Max. No. of Syringes: Ten
- Syringe Size:
- 10 µl to 10 ml (10 syringes)
- 20 ml to 60ml (6 syringes)
- 100 ml to 140 ml (4 syringes)
- Dimensions:
- 11 x 9 x 5.5 in.
- 28 x 23 x 14 cm
- Weight: 9 lb (4 kg)
- Linear Force: 40 lb (18 kg)
- Advance Per Microstep: 0.165 micron (1/16 step)
- Max Step Rate (1/2 Step): 1600/sec
- Min Step Rate: 1 step / 100 sec.
- Accuracy: ± < 1%
- Reproducibility: ± 0.1%
- Audible Alarm: (Optional)
