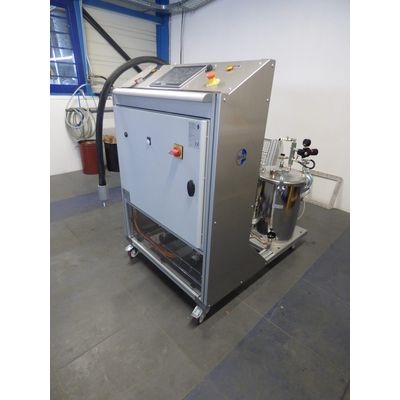

ISOJET -Model DPE Indus -Injection Machine for Precision Applications
The DPE Indus injection machine is designed for applications demanding high precision and control. Utilizing disposable static mixers, it avoids the need for cleaning solvents and ensures accurate dosing. The machine is versatile, being customizable to process a variety of materials including dielectric resins, Polyurethane, Epoxy, or Silicone. Its operation suits multiple techniques such as RTM and RIM injection, infusion technology, and electronic encapsulation. Notably, it supports higher production volumes with larger volume tanks and accommodates 200L drums or IBC containers. The DPE Indus is compatible with a range of products and resins from brands like SIKA, ELANTAS, EBALTA, and more, making it adaptable to diverse industrial requirements. This machine can be tailored to fit specific application needs, showcasing its flexibility in advanced manufacturing processes.
- Flow rate (cc/min) : 50 to 3000
- Mix ratio : 100/10 to 100/100
- Viscosity resins (mPas) : 10 to 50 000
- Pump pressure sensor
- Low level sensor
- Tank volume : 9L to 200L
- Resins type : PU / EPOXY / SILICONE
- Heating up to 120°C
- Power supply : 230V / 400V
- 10″ Touchscreen
- Barrel Scan
- Heating / Stirring / Vaccuum
- Flowmeter
- Degassing / Vacuum
- Dynamic mixing head
- Pressure sensor at the mixer outlet
- Dryer
- Fixed or mobile mixing head
- Tank feeding from 200L / 1000L container
Our DPE Indus is the most suitable injection machine for sensitive applications where precision and control are essential. As with all of our dosing machines we use disposable static mixers because they have the advantage of avoiding the use of cleaning solvents and allow precise dosing to be obtained.
This machine can be modified / customized according to your needs to process dielectric resins, Polyurethane, Epoxy or Silicone and can to be present throughout the RTM injection (Resin transfer moulding), RIM injection, infusion technolgy OoA) , casting, coating, electronic encapsulation (potting) and molding.
It is the counterpart of the DPE ECO, but it allows higher production volumes thanks to the use of larger volume tanks, as well as filling using 200L drums or IBC.
Our machines use products/resins from SIKA, ELANTAS, EBALTA, HEXCEL, WESTLAKE, RESOLTECH, SICOMIN, SOLVAY, VON ROLL (Damival), WACKER Chemie, WEVO- chemie GmbH …..
