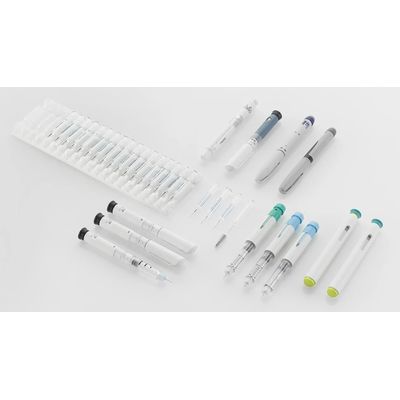

HIGH-END ASSEMBLY AND TESTING EQUIPMENT FOR ALL INJECTION SYSTEMS. We master all processes from needle separation to the finished product. Our customers have to manufacture sophisticated injection products in large quantities. This requires highly accurate assembly and functional test processes. teamtechnik has developed a unique expertise in this area and provides reliable assembly solutions for pre-assembly, final assembly and function testing - the complete production chain from a single source.

Most popular related searches

injectable product

injectable self

medical technology

needle syringes

Fully automated assembly and test system for injection pens

teamtechnik delivers everything from a single source with perfectly coordinated interfaces:
assembly, testing, software, feeding technology and palletizers

Safe handling of delicate cannulas up to gauge 34

Special magazine systems with separation technologies adapted to suit the individual cannula format are required for feeding delicate cannulas. The needles/cannulas are often rotated in order to ensure correct alignments. To do this, sensors record the micrograph for alignment and use the camera to check the needle alignment up to +/- 3 degrees. teamtechnik has the expertise required to handle even such delicate products safely.

Implemented processes

We master the critical processes for self-injection devices, pens and safety syringes: from needle separation to the finished product. At the end, our test systems verify our customers` high-quality products inline or offline.

Glass handling
Tip handling
Inscription
Volumetric glue dosing
Needle handling
Needle orientation
Needle separation

Needle bending
Gluing (dosing, spotting)
Curing with LED and UV
Curing with UVA / UVC
Camera testing
Functional testing
and many other processes

Reliable gluing of a cannula into a carrier
Curing adhesive with LED
Mounting and testing of scale tubes
Marking (laser, pad, inkjet printing etc.)
Pre-assembly in seconds
Assembly system for cannulas
Assembly of glass syringes with integrated camera inspection
Functional test system for pens and auto-injectors

Inspired by market requirements, teamtechnik independently develops new and innovative processes. One example is the automated curing of FDA-certified glue for glass syringes using LED. Compared to the previous UV curing, this process technology is almost maintenance-free, space-saving and very efficient at high production rates.

Our TEAMED Injector Test is the proven test system for injection systems. Offline tests are carried out on a batch and random basis. Automated processes thus ensure maximum safety. Only perfectly functioning injection systems pass the tests.
