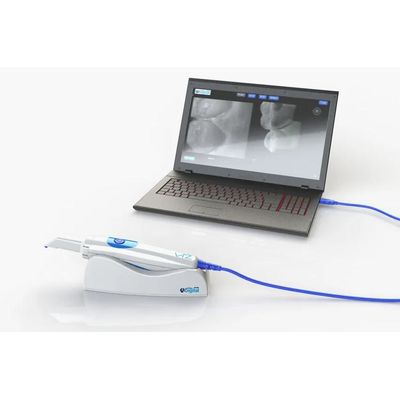

Viz - Intraoral Scanner

Fast & Comfortable
The Viz Intraoral Scanner makes scanning fast and easy for dentists and assistants, ensuring optimal patient comfort & reduced time in the chair.

High Accuracy
Ensure optimal treatment results for your patients. Viz Intraoral Scanner delivers high accuracy on single units, quads and full arch.

Plug & Play
Every Viz Intraoral Scanner System comes with a premium laptop with the easy to use software pre-installed. So, right out of the box you are able to start scanning immediately.

Perfect-Fit & Design
The Viz Intraoral Scanner System comes with replaceable multi-tips to fit all mouth anatomies.

With the Instantly heated mirror for anti-fogging, it ensures you get fast and accurate scans every time.

Fast, small and accurate
With a total weight (hand piece, tip and cable) of 250 grams and 42 x 44 x 260 mm dimensions, VIZ® is designed for easy, quick and effective scanning. Real-time three-dimensional imaging is produced at a rate of 10 frames per second, while scan duration takes approximately no longer than two minutes per half arch. The scanning procedure is supported by a tip pillow for enhanced control, accuracy and quickness.

Open STL Files
Dentists should have maximum freedom to work with their lab of choice. VIZ® produces an open STL file that can be sent to any dental lab, as it fits all operating systems.

User Friendly Software
VIZ® comes with a dedicated laptop and installed software, which produce STL files after scanning. VIZ® easily turns on and off via one button. The scanning mirror warms up instantly, with no wait time.

Nearly 1/2 the Cost
VIZ’s cost-effectiveness is derived from its features, which include everything dentists need to produce accurate and quick scans – without the additional expensive features they don’t need.

Free Laptop
Each Viz Intraoral Scanner comes with a Dedicated Laptop with the Installed Software. This way you are ready to go right out of the box.

Training & Technical Support
Adin Digital supplies dentists with free instruction, training and support, until they master the scanning process. VIZ® clients also have access to Adin Digital’s Helpdesk services, speaking their designated language. Software updates are free as well (for two years from date of purchase).

• Total Tip Length: ~82mm
• Tip Head width: Small tip: 18mm Regular tip: 22mm
• Real-time three dimensional imaging – at rate of 10 frames per second
• Scan duration: up to 60 sec (full arch)
• Operating system: Windows 10 (64Bit)
• Data format: STL / PLY
• Total weight (hand piece, tip and cable): 250 g
• Dimensions: 42 x 44 x 260 mm
• Field Of View (FOV): 13 x 16 mm
• Depth of field: ±10 mm
• Gray level image acquisition (monochrome)
• Fog removal mechanism for mirror (Heated mirror)
• Power supply: Via USB3 (5VDC/900mA)
• Data transfer: Via USB3 (cable length 3m)
• Start / stop scan using a single push button
• Water drip resistant
• Computer specification: any commercial computer (desktop or laptop) that meets computer requirements and conforms to UL60950-1 or IEC/EN60950-1
• Factory calibration
• CE Medical Class: Med. I
• Safety Class: designed to meet IP53 level
• Cleaning: Scanner Body – Wipe-off; Tip – Cold disinfection
• Powder scan spray required
• Operation Temp.: 15 – 35 °C
• Storage Temp.: -10 – 50 °C
• Humidity (Operation & Storage): 20 – 80%
