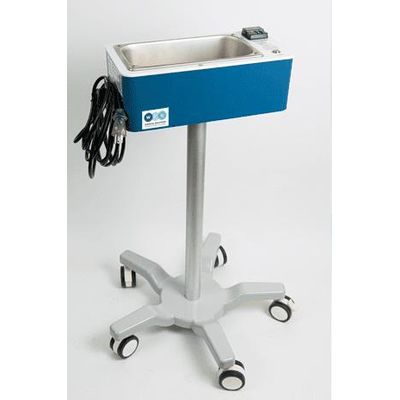

WEG - Model SW-R38L - Irrigation Fluid Warmer
The risk of breaches to the sterile field caused by “burns” or “holes” in the traditional sterile warming drapes reduces confidence. WEG Warming Systems are built to precisely control temperature, aid drape placement, and provide additional protection to help to prevent drape burns or punctures which can result in contamination of the sterile, warmed Irrigation Fluid. WEG Solution Warming Systems assist in keeping the patient warm while maintaining a sterile environment, helping support the team’s confidence in great surgical outcomes.
Most popular related searches
patient warming
sterile field
surgery outcome
fluid warmer
drape
surgery power
surgical
hospital temperature
Power:
- 120 Volt A/C, 60 Hz, 3 Amps for Model SW-R38L, 4 Amps for Models SW-R58L and SW-C72L
Fuses:
- (2X) Fast Acting, 5 Amp, 250VAC, 0.25″ x 1.25″ Glass Body
Environment:
- -40°C to +70°C (-40°F to +158°F) storage and transport temperature
- 10°C to 35°C (50°F to 95°F) operating environment
- 0 to 90% Relative Humidity, non-condensing
Power Cord:
- NEMA 5-15P
- Straight-Blade Connector
- Hospital Grade
Control Method:
- Temperature is controlled by regulation of heat input based on current fluid temperature.
Temperature Setpoint:
- Unit comes with a default temperature setpoint that is pre-programmed at the factory. The default setpoint is the temperature the unit controls to when powered on. Upon special request, units can be pre-programmed at the factory to a default setpoint within the AORN guideline temperature range.
Setpoint Adjustment:
- The temperature control setpoint can be adjusted within a range of 70°F to 120°F during operation. Setpoint will return to the pre-programmed default temperature when unit is powered on/off.

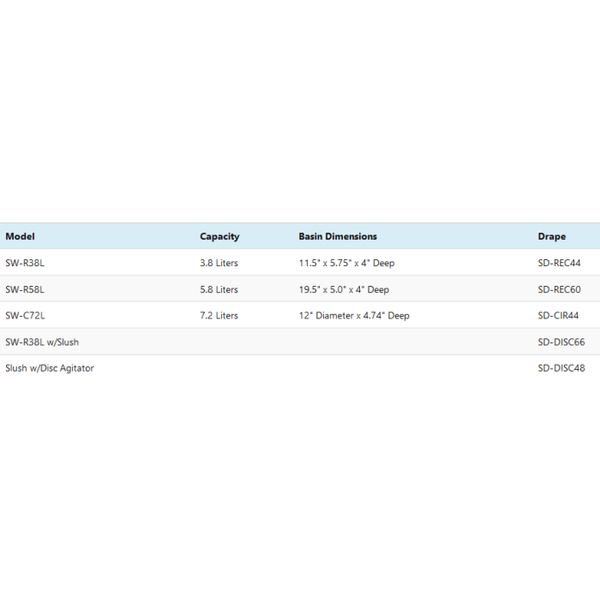

- MODEL: SW-R38L
- Capacity 3.8 Liters
- Basin Dimensions: 11.5" Diameter X 5.75 X 4" Deep
- Minimum Required Fluid Volume: 1.0 Liter
