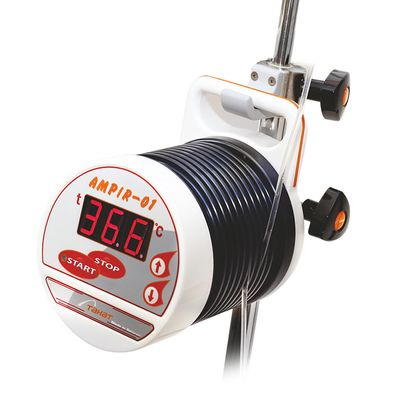

Tahat -Model AMPIR-01 -IV Fluid and Blood Warmer

SHARE

Warming of infusion solutions, IV fluids, blood and its substitutes is one of the conditions of proper infusion therapy. The use of Ampir-01 in everyday medical practice helps to improve patients` conditions in pre-, intra- and post-operative periods, and reduce complications caused by hypothermia. Can be used in OR, emergency rooms, intensive care units, etc.

Most popular related searches
  • Fast warming of IV fluids, blood and its substitutes
  • 24h set temperature maintenance
  • Flow rate - up to 6 000 ml/hour
  • Open system. Any long standard IV lines can be used

Power supply: 110-230 VAC, 50/60 Hz
Temperature setting: 34°? to 41,5°?
Temperature increment: 0.1°?
Warm-up time: < 5 min
Flow rate: up to 6 000 ml/hour
IV line diameter: up to 4.5 mm
Continuous operation: 24 h
Maximum power consumption: 390 W
Average power consumption: 30 W/h
Electric shock protection class: ?/I
Protection rating: IP 23
Demensions: 225×195×170 mm
Weight: approx. 2.8 kg
CE mark: +

  • Infusion therapy for children and adults
  • Blood transfusion
  • Infusion of blood plasma and serum
  • Effective warming owing to special design and large contact surface of the heat exchanger
  • 24h set temperature maintenance
  • Secure retention of the IV line in the heat exchanger
  • Any standard long IV lines can be used
  • Constant monitoring of all device systems
  • Quick and easy set-up and mounting on an IV stand or rail

Heat exchanger

  • 2-3 winds of the IV line around the heat exchanger are enough for effective warming
  • One wind of the IV line around the heat exchanger is 435 mm.
  • 2 IV lines can be used simultaneously
  • Open system. Long standard infusion lines from any manufacturer

Microprocessor control unit

  • LED display
  • User settings
  • Self-diagnostics at the power-up and during operation
  • Audible and visual alarms of high and low temperatures and faulty operations

Mounting

  • IV fluid warmer can be mounted on an IV stand or rail with the diameter of 15-55 mm
  • Secure non-slip mounting
