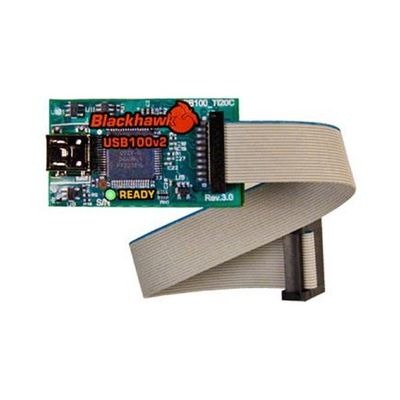

Blackhawk -Model USB100v2 -JTAG Emulator
The Blackhawk USB100v2 controller is a very low-cost controller for basic debugging of Texas Instruments DSPs. Requiring no external power source, the USB100v2 can support most of the basic features of higher priced emulators and requires no additional drivers when installed using CCS v4 or later. The USB100v2 is a TI XDS100v2-compatible emulator fully supported under CCS v4 and future Texas Instruments roadmap software development environments. Blackhawk’s USB100v2 provides additional features and performance not found in other XDS100v1 emulators. The USB100v2 provides for faster code downloads and assembly code stepping in that the USB100v2 uses a high-speed USB2.0 (480 Mb/s) port instead of slower USB1.x (12 Mb/s) implementations.
- HIGH-SPEED USB 2.0 (480Mb/s) Plug n` Play Host Interface
- 1.8/3.3 volt device I/O support
- Native 2x10 20-pin compact cTI header
- Includes 2x7 14-pin JTAG adapter
- Code Composer Studio v4 support
- Power Status LED
- Online Support from TI.
- Easy on your budget
- Simple to install and use
- No drivers are required
- Meets the needs of most projects
- Windows 2000/XP/Vista/7/8 (32-bit)
- Windows XP/Vista/7/8 (64-bit)
- Code Composer Studio v4 (eclipse): v4.0, v4.1, v4.2, and later
- Code Composer Studio v5 (eclipse): v5.0, v5.1, and later
- Available USB port
- Target HW with TI 14-pin or 20-pin cTI JTAG header or appropriate pin converter
- USB100v2 JTAG Emulator
- 20-pin cTI to 14-pin Adapter
- USB Cable
- Quick Start Guide
Audio, Automotive, Broadband, Communications, Telecom, Computers & Peripherals, Consumer Electronics, Industrial, Medical, Military, Security, Video and Imaging, Wireless.
Measuring just 1.6”L x 0.80”W x 0.65”H (4.6cm x 2.0cm x 1.5cm), not including the 5 inch cable, the Blackhawk USB100v2 is the smallest and most compact emulation product from a US manufacturer and is fully assembled and tested in the USA. It will support 1.8-3.3v targets with native cTI compact 20-pin connections and also includes standard 14-pin emulation adapter.
Additionally, with an optional 20cTI to 20ARM connector (available from Blackhawk), the USB100v can connect to 20-pin ARM Multi-Ice platforms.
